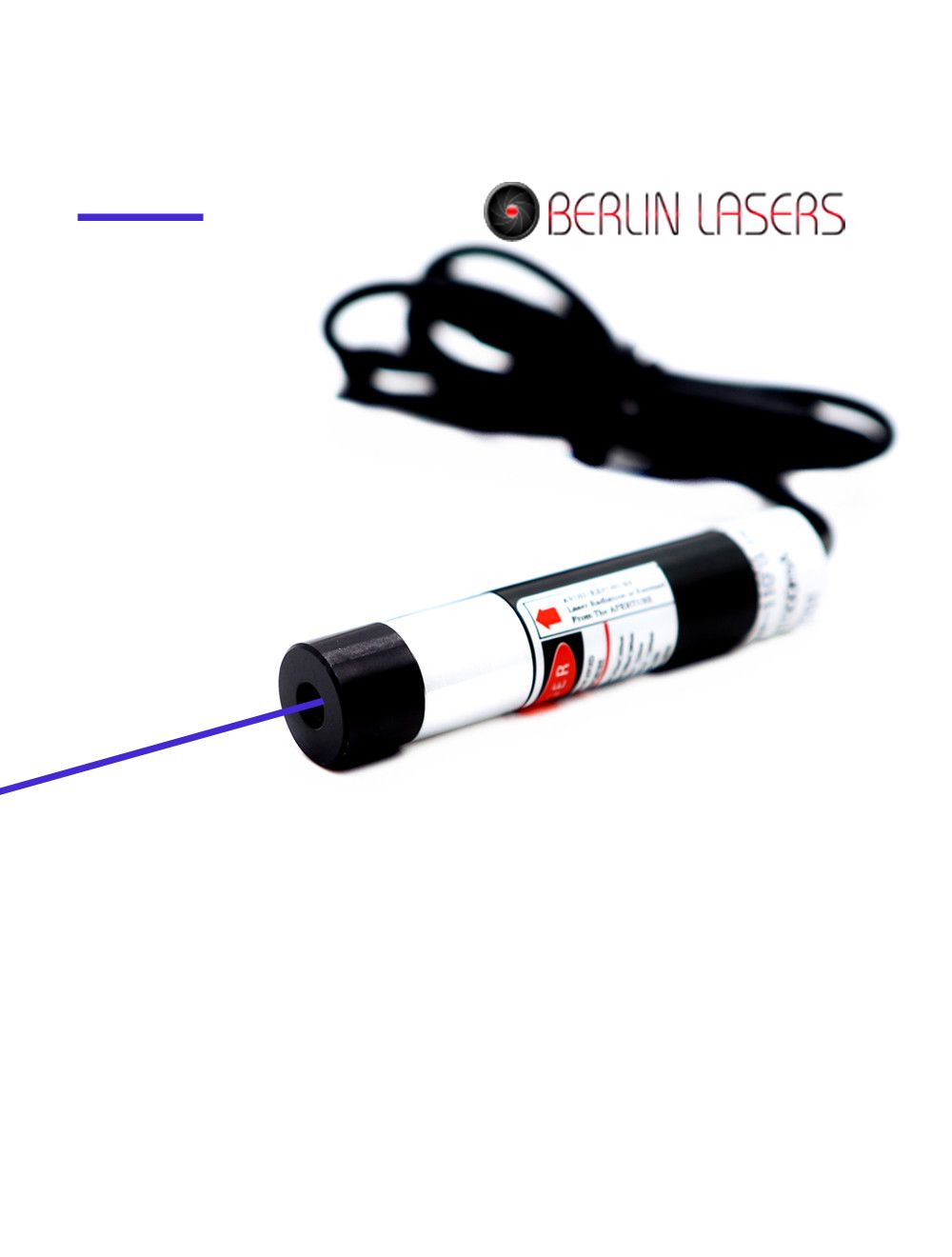

Wide Fan Angles 447nm 5mW to 100mW Blue Laser Line Generators
High intensity beam emitting 447nm blue laser line generator applies quality import 447nm blue laser diodes, wide fan angles optic lenses and APC, ACC driving circuit board, ensuring highly visible blue laser light projection and high linear quality blue line source in continuous use. Easy connecting with AC/DC adapter and proper mounting onto industrial device, blue laser module makes sure of easy, convenient and low cost line alignment for all precise line measurement works.
- Buy 3 for $127.99 each and save 2%
- Buy 5 for $125.99 each and save 3%
- Buy 10 for $123.99 each and save 5%
Durable anodized aluminum alloy housing made 447nm blue laser line generator gets featured advantage of ultra compact structure, good direction, quick response. Available with good thermal emitting system, qualified optic lens, it assures superior nice industrial stabilization and high level of accuracy line alignment in distance. After easy adjustment of laser beam focus, blue laser module gets increasing accuracy and brightness blue laser light emission and blue line measurement for industrial and high tech fields.
Key features:
Wide range output power of 5mW 10mW 20mW 30mW 50mW 80mW 100mW import 447nm blue laser diodes and metal heat sink cooling system are integrating with high duration metal housing tube. Blue laser modules assure good thermal emitting and highly stable blue line generation in continuous use.
APC, ACC driving circuit board assures constant output power and electric current supply. The genuine blue line projection gets no light decay, and up to 85% laser beam stability within maximum work time of 8 to 10 hours.
AC/DC adapter with 5V, 9V operating voltage supports 447nm blue laser module with intense blue laser light emission and continuous blue reference line projection.
Freely installed distance of 3 meters ensures convenient installation and adjustment of blue laser line generator. It makes no barrier and noncontact line alignment constantly.
Wide fan angles of 10° to 110°glass coated lens and Powell lenses project qualified Gaussian beam or non Gaussian distribution green laser beam, generate highly fine and clear blue line with various line lengths.
Technical data:
| Item | Blue Laser Line Generators |
| Wavelength (nm) | 447nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 20°, 30°, 45°, 50mW, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2.5mm; At 2m distance: <2.5mm |
| Beam divergence (mrad) | 3.0mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 447nm blue laser line generator and 1 ea AC/DC adapter
Applications: industrial precise line alignment, holographic imaging, Roman, Coherent detection, laser communication, laser show and laser displaying etc
Note: The use of high power 445nm blue laser up to 50mW to 100mW projects powerful blue laser radiation and reflection, also generating thermal energy hurt to human eyes and retina. Please avoid eye exposure to beam aperture and wear correct laser safety goggles so as to assure easy and safe line measurement constantly.
