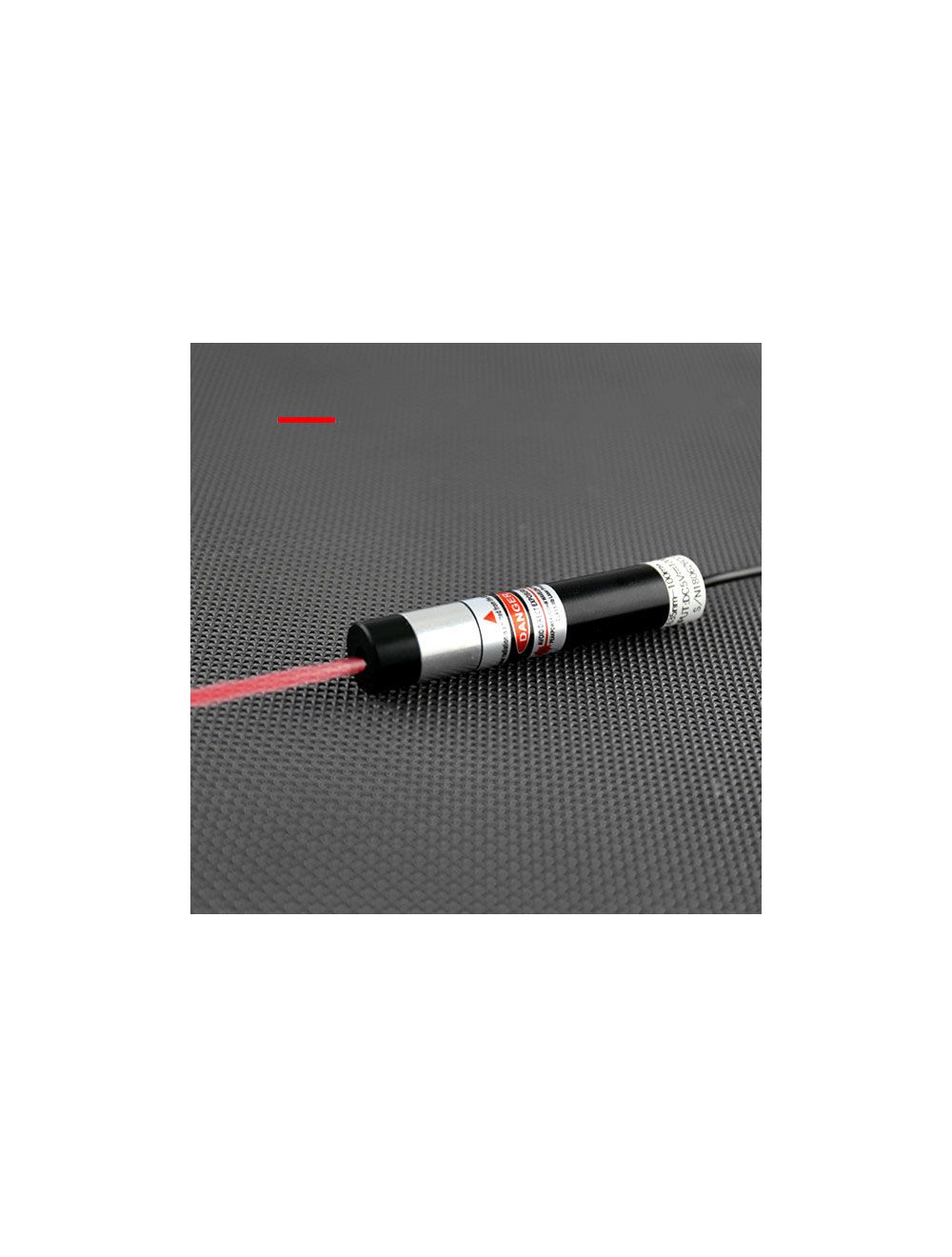

Glass Coated Lens 660nm Red Line Laser Module
Direct diode emission made 660nm red line laser module makes the best use of qualified 660nm red laser diode within 5mW to 100mW, configured with cooling system, APC driving circuit board and qualified glass coated lens with high duration metal housing tube. It gets featured advantages of superior nice thermal stabilization, compact structure, quick direction and competitive production cost. Adjustable focus made 660nm red laser assures qualified red laser light source emission and increasing accuracy red line alignment for industrial and high tech line aligning fields.
- Buy 3 for $67.99 each and save 3%
- Buy 5 for $65.99 each and save 6%
- Buy 10 for $62.99 each and save 10%
Employing an import 660nm red laser diode and basic use of metal heat sink cooling system, 660nm red line laser module easily obtains at least 40% improvement of laser beam stability in continuous line projection work. An external electric power source has just assured continuous red laser beam and red reference line projection from beam aperture. Compact structure made laser line generator allows convenient and noncontact line alignment for multiple application fields, including prominent institutes, labs and universities etc.
Adjustable focus lens assures highly fine red line alignment. 660nm red line laser module enables easy screw of front silver circuit part, achieves concentrated red laser light and increasing accuracy red line alignment.
External AC/DC adapter assures constant and highly stable performance. Accepting 100V to 240V electric current, converting into 5V, 9V 1000mA DC power supply, 660nm red laser enables highly clear and visible red reference line projection for a large variety of working occasions.
Qualified glass coated lens assures highly fine line alignment. Wide range fan angles of 10 to 110 degree enables high linear quality and no decay light line alignment constantly.
APC, ACC driving circuit board allows good performance constantly. Intelligent feedback control of output power and electric current have just assured the most stable line projection. 660nm red line laser module gets up to 85% beam stability within 8 to 10 hours constant work.
Technical Parameter:
| Item | Glass Coated Lens Red Line laser Module |
| Wavelength (nm) | 650nm |
| Output power (mW) | 5mW-100mW |
| Available Fan Angle (degree) | 10°- 110° |
| Beam diameter at aperture (mm) | <2.0mm; at 2m diameter: <2.0mm |
| Beam divergence (mrad) | 5 mrad |
| Beam mode | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | 5mW-20mW:DC＝5V; 30mW-100mW:DC＝9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 15℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | 5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm |
| Expected lifetime (hours) | ≥8000 hours |
| Warranty | 6 months |
Applications: laser cutting machine, sand milling machine, embroidery machine, textile garment processing, wood, stone and metal processing etc
Note: High power 660nm red line laser module up to 50mW to 100mW projects thermal energy from beam aperture. Any eye exposure might cause hurt to eyes. Do remember to wear laser safety goggles to avoid any potential hurt to eyes.
Packing List: 1 pc 660nm red line laser module and 1 pc AC/DC adapter
