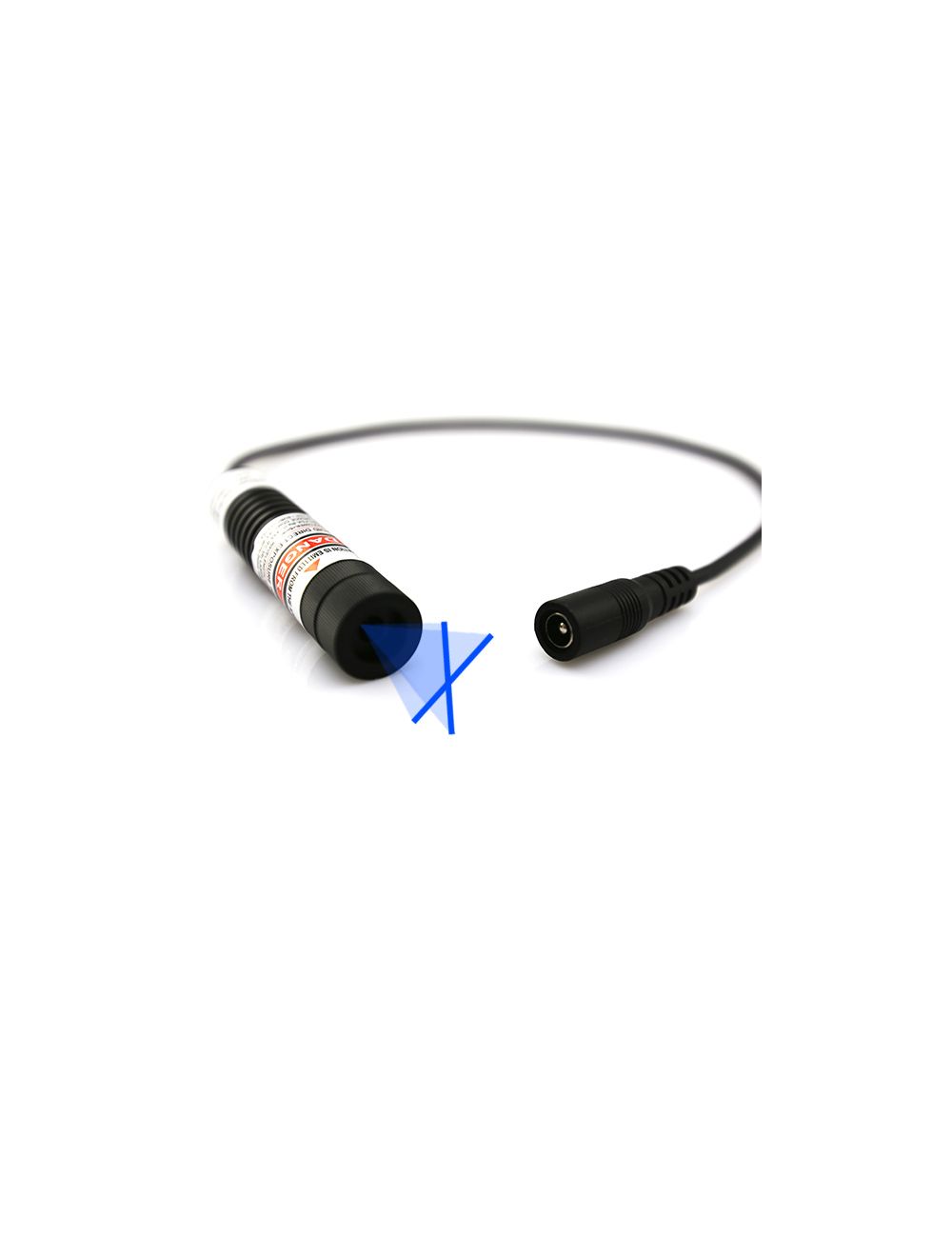

445nm Blue Crosshair Laser Module
High brightness 445nm blue crosshair laser module with high power of 50mW, 80mW, and 100mW, combines all internal parts of 445nm blue laser diode, qualified glass cylindrical lens, constant current electric driving circuit, and metal heat sink cooling system into a quite compact size laser tube. This advanced blue cross line laser module just fulfills the most accurate and precise cross line generation for all industrial blue laser source applied fields, including precise machinery processing, teaching test light source, laser medical treatment devices, stage light, and laser targeting tools etc.
- Buy 2 for $118.98 each and save 2%
- Buy 5 for $115.99 each and save 5%
- Buy 10 for $111.98 each and save 8%
Not the same as other visible laser modules, 445nm blue crosshair laser module just generates the highest brightness blue cross line laser source directly from its high powered 445nm blue laser diode, just ensuring the most stable and reliable blue cross line projection for all industrial cross line used fields. Employed by laser glass cylindrical lens with 10 degree, 15 degree and 110 degree, this advanced blue laser module provides high accuracy blue vertical and horizontal lines with different line length, line width at different working distance.
◆ Durable metal housing blue laser module fulfills efficient thermal conductivity.
The anodized aircraft used aluminum housing material assures 445nm blue crosshair laser module the most efficient thermal emission together with internal metal heat sink cooling system. It gets wide operation temperature stabilization for all industrial cross line generation.
◆ External DC power supply assures 24 hours continuous cross line alignment.
445nm blue cross line laser generators employs DC input power supply, together with constant current driving circuit board, makes sure of stable and reliable two perpendicular lines for all alignment and positioning. Blue cross line laser module keeps stable output power after strict tests of aging preventing, rapid electric adding. Blue laser beam keeps highly bright and visible, no dim, decay or blur.
Key features:
◆ Compact size blue laser module enables easy and convenient installation and operation in all industrial laser-using fields.
◆ Glass coated cylindrical laser lens with wide selections of 10°, 15° and 110°, generate different cross line length and line thickness at different working distances.
◆ Bright blue cross line generation from high output power of 50mW, 80mW and 100mW
Technical parameters:
| Item | Blue Cross Line Laser Module |
| Wavelength (nm) | 445nm |
| Output power (mW) | 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 15°, 110° |
| Laser Class | IIIB |
| Beam thickness at aperture (mm) | <2.5mm |
| Beam divergence (mrad) | 3mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| TTL Modulation | NO |
| Operating voltage(v) | DC＝3.0V |
| Operating current (mA) | I<500mA |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Power Supply:
Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm
Packing List:
1. 455nm blue cross line laser module
2. DC input power Supply
Attention: For high powered or OEM 445nm blue crosshair laser modules, please contact us free at support@berlinlasers.com.
