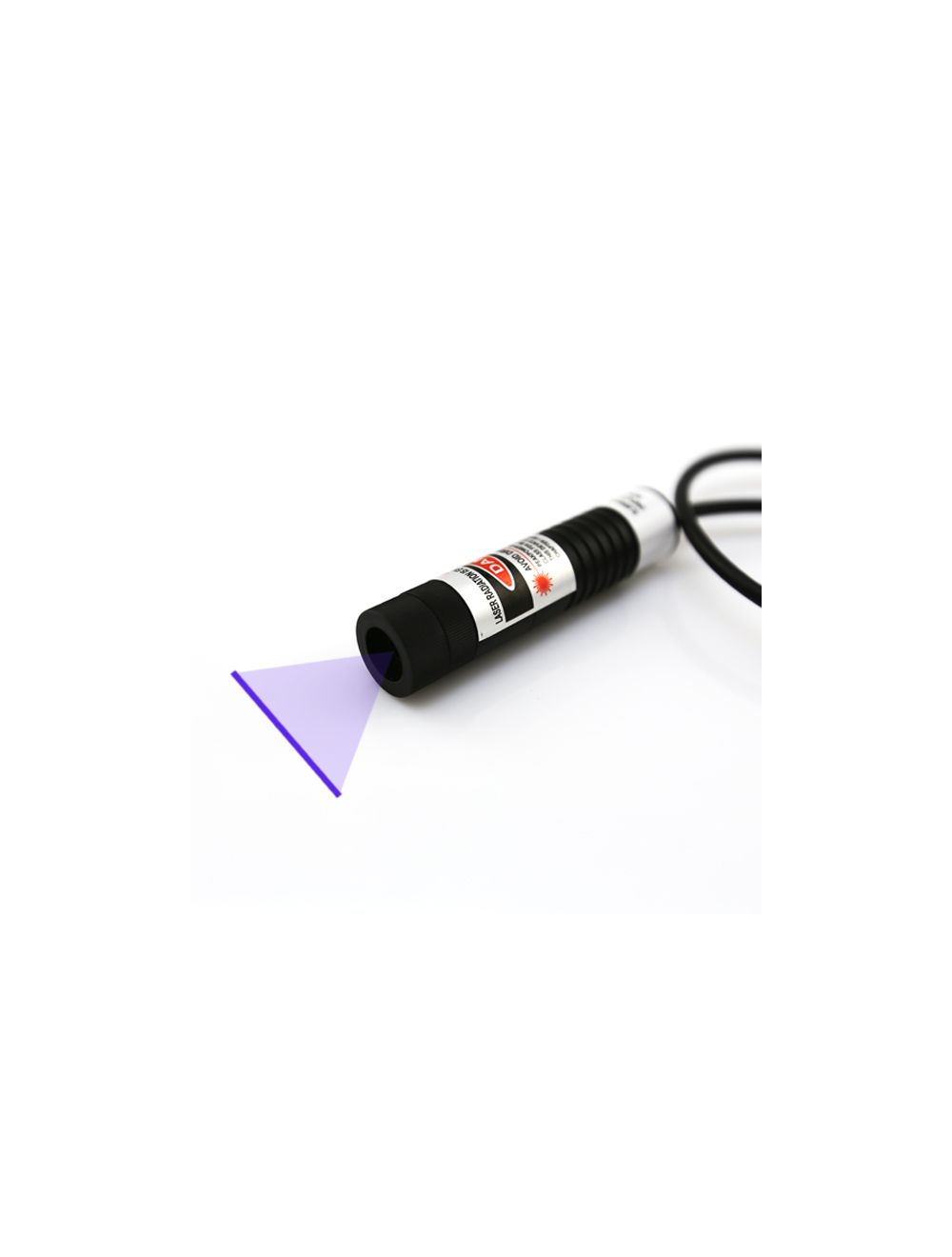

405nm Glass Lens Violet Laser Line Generator
Employed by a bit longer wavelength than UV lasers, 405nm violet laser line generator is only getting moderate brightness violet laser beam and violet laser line emission in real line alignment use. It is providing high efficiency blue laser line alignment source for both industrial use and high tech use including biochemical, military industry, optical memory, spectroscopy and fluorescence etc. Correct selection of both output power and glass coated lens degree has just made 405nm blue laser module workable with no mistake and competitive line aligning solution efficiently.
- Buy 3 for $112.99 each and save 3%
- Buy 5 for $109.99 each and save 5%
- Buy 10 for $106.99 each and save 8%
The employment of import 405nm violet laser diode and qualified glass coated lens have just made 405nm violet laser line generator get even more stable and reliable violet reference line source in long term use. According to its compact design with 16mm diameter laser tube with aircraft used aluminum alloy housing material and copper material made 405nm violet laser diode core part, this violet laser module assures superior thermal conductivity, easy carry and install, and long term line alignment for all industrial and high tech fields effectively..
◆ High linear quality violet laser line targeting with selectable line length.
Employed by qualified glass coated lens within optic lens degree within 10 degree to 110 degree, violet laser module keeps high straightness and fine violet reference line targeting. Correct selection of glass lens degree obtains different line length among 0.5 to 6 meters.
◆ Compact and durable structure assures stable line aligning under multiple occasions.
405nm violet laser line generator keeps superior thermal emitting and stable line alignment performance under mechanical shocking, calibration or shocking etc. Line alignment works well under wide operating temperature.
◆ Long term line alignment with constant electric current supply.
Integrating APC driving circuit board input 16mm diameter tube, violet laser module maintains stable and constant electric current and output power supply, obtaining high stability violet laser line positioning within 8 to 10 hours a day.
Superior features:
◆ High power violet laser line generator passes through up to 24 hours aging preventing test, alternative high and low temperature test, and super rapid electric current adding test, assuring high stability line alignment efficiently.
◆ Multiple optic lens degree of 10°, 20°, 30°, 45°, 60°, 110° obtains various line lengths, fulfilling multiple high tech and formal industrial line uses.
◆ DC input power supply allows wide operating voltage of 100V to 240V, and constant violet laser line alignment under strong interference or strong static etc.
◆ High output power of 50mW, 80mW and 100mW, configured with metal heat sink cooling system and metal housing part, enables highly stable and reliable violet line aligning in long distance.
Note:
High power 405nm violet laser line generator only allows correct operation by skilled users or trained uses. Users should adjust 405nm violet laser module to the best line thickness and line direction and operate under special alignment equipment.
Warning! High power 405nm violet laser line module up 50mW emits powerful radiation and thermal energy that can be harmful to human eyes. Never forget to avoid eye exposure at close distance which can cause serious eye damage. Do remember to wear professional laser safety goggles for any 405nm laser line device.
Technical parameters:
| Item | Violet Laser Line Generator |
| Wavelength (nm) | 405nm |
| Output power (mW) | 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 20°, 30°, 45°, 60°, 110° |
| Laser Class | IIIB |
| Beam thickness at aperture (mm) | <2.5mm |
| Beam divergence (mrad) | 2.8mrad |
| Beam mode (before optics) | TE00 |
| Focus adjustable? | Yes |
| TTL Modulation | NO |
| Operating voltage(v) | DC＝3.0V |
| Operating current (mA) | I<500mA |
| Operating temperature(℃) | 10℃～30℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Power Supply:
Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 3V ,500mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm
Packing List:
1. 405nm violet laser line generator
2. DC input power Supply
Attention: For high powered or OEM 405nm violet laser line generator, please contact us free at support@berlinlasers.com.
