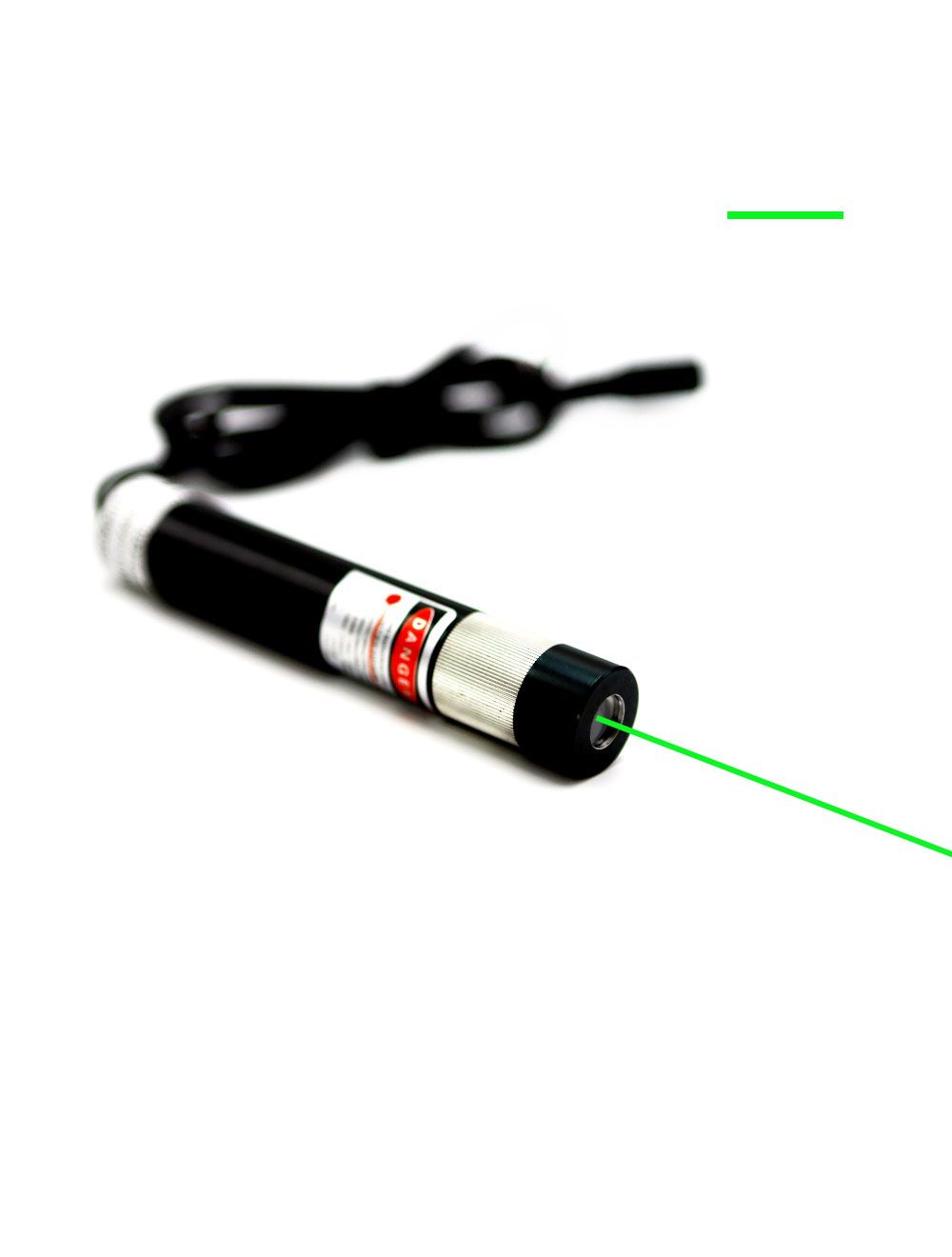

High Power 515nm 100mW to 500mW Green Line Laser Alignment

Direct diode made high power 515nm green line laser alignment allows intense and powerful forest green laser beam emission via an import 515nm green laser diode within 100mW to 500mW. Employed by a qualified glass coated lens or separate crystal lens within wide fan angle and strict laser beam stability test, this focus adjustable lens made high power 515nm green laser module fulfills high fineness and high accuracy line generation for all precise machinery processing works.

Regular Price 349,99 US$ Special Price 309,99 US$
Availability: In stock
SKU
HP515nm-GLLA
  • Buy 2 for 306,99 US$ each and save 1%
  • Buy 5 for 303,99 US$ each and save 2%
  • Buy 10 for 299,99 US$ each and save 3%

The unique use of adjustable focus lens made high power 515nm 100mW to 500mW green line laser alignment enables increasing brightness forest green laser light source emission, and high efficiency conversion of ultra fine and bright forest green reference line projection at greater distance and high lighting occasion. After correct selection of both of output power and optic lens fan angle, this industrial stabilized 515nm green laser module brings users the best line alignment solution for prominent labs, institutes and colleges etc.

Key features:
Employed by an import 515nm green laser diode and metal heat sink cooling system, after configuration with a high duration anodized aluminum alloy housing tube, high power 515nm green laser alignment obtains excellent thermal emitting and highly reliable forest green line projection up to 85% laser beam stability.
Qualified glass coated lens or separate crystal lens within 10 to 110 degree assures high linear quality and high straightness forest green line indication. Cooperating with strict laser beam stability test and glass window, 515nm green laser module gets good environmental stabilization and high precision green line projection for multiple use.
Easy connects with 9V, 12V 1000mA DC power supply support 515nm green line laser alignment with long lasting forest green line projection, without effect by overheating and over current impact as well.
Long serving lifetime of more than 8,000 hours, and reduced possibility of tube burning out or damage under proper operation by skilled users or professionals.

Technical parameters:

Item High Power Green Line Laser Alignment
Wavelength (nm) 515nm
Output power (mW) 100mW, 150mW, 200mW, 300mW, 400mW, 500mW
Available Fan Angle(degrees) 10°-110°
Laser Class IIIB
Beam thickness at aperture (mm) <2.0mm; At 2m distance: <2.5mm
Beam divergence (mrad) 2.5mrad
Beam mode (before optics) TEM
Focus adjustable? No
Operating voltage(v)  DC=9V, 12V
Operating current (mA)  I<1000mA, 2000mA
Operating temperature(℃) 10℃~45℃
Storage temperature(℃) -10℃~50℃
Dimension  D26mm×L150mm
Expected lifetime (hours) 8000 hours
Warranty Period 180 days

Applications: industrial line measurement, collimation, laser medical therapy and treatment, optical instrument, scientific experiment etc
Note: The operation of such high power 515nm green line laser alignment emits serious powerful green laser radiation and thermal energy hurt to eyes. Users should wear correct laser safety glasses and avoid eye exposure to laser beam aperture so as to achieve easy and secured line indication easily and freely.
