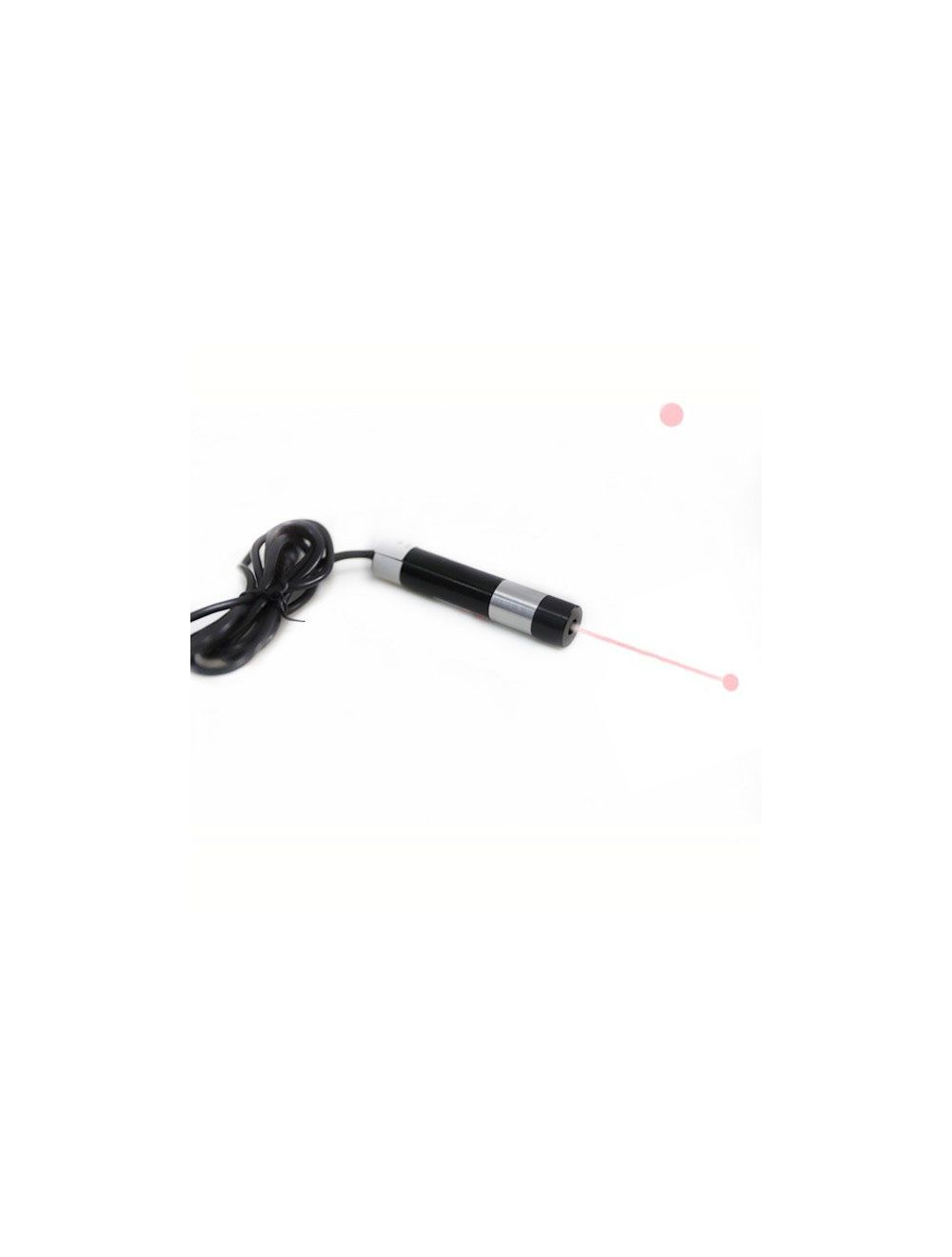

IR Dot Indicating 830nm 5mW-200mW Infrared Laser Diode Modules
Ultra compact structure designed 830nm infrared laser diode module configures import IR laser diode, qualified glass coated lens and electric driving circuit board with high duration anodized aluminum alloy housing tube. It provides users high intensity and highly powerful infrared laser light emission of 830nm infrared laser diode, makes sure of the highest level of accuracy and cost effective infrared laser dot generation for prominent institutes, labs and colleges etc.
- Buy 3 for $95.99 each and save 2%
- Buy 5 for $93.99 each and save 4%
- Buy 10 for $91.99 each and save 6%
Employed by import 830nm IR laser diode within 30mW to 200mW, laser tech engineers designs the most professional night version dot aligning tool of 830nm infrared laser diode modules. This invisible beam emitting infrared laser is operating easy and convenient after professional equipment with night version device and instrument. Correct use of output power and proper laser beam focus adjustment fulfills high level of accuracy infrared dot alignment.
Key features:
Wide optical output of 30mW to 200mW 830nm infrared laser diode modules assure continuous infrared laser beam emission, and stable and clear infrared dot alignment in distance.
Durable metal housing with metal heat sink cooling system allows the best thermal emitting and no light decay.
AC/DC adapter within 100V to 240V electric current supply enables strong environmental stabilization. It enables highly stable and reliable performance under overheating and over current.
Adjustable focus lens makes intense infrared laser light concentration, the best quality infrared laser source emission, and increasing accuracy and brightness infrared laser dot projection.
APC, ACC driving circuit board prevents increasing temperature, protects 980nm infrared laser module without tube burning out or damage in continuous use, and long lifetime.
Technical data:
| Item | Infrared Laser Diode Module |
| Wavelength (nm) | 830nm |
| Output power (mW) | 5mW 30mW 50mW 100mW 150mW 200mW |
| Laser Class | IIIb |
| Beam divergence (mrad) | 6mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| TTL Modulation | No |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA; |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 830nm infrared laser diode module and 1 ea AC/DC adapter
Applications: Raman spectroscopy, industrial infrared dot measurement, laser medical therapy device, spectrum analysis, and infrared laser communications.
Note: Under operation of any output power made 830nm infrared laser diode module, please avoid eye exposure to beam aperture. Human eyes cannot observe any infrared laser radiation and reflection. Please wear professional infrared laser safety goggles and glasses so as to make easy and free use of invisible beam 830nm infrared lasers.
