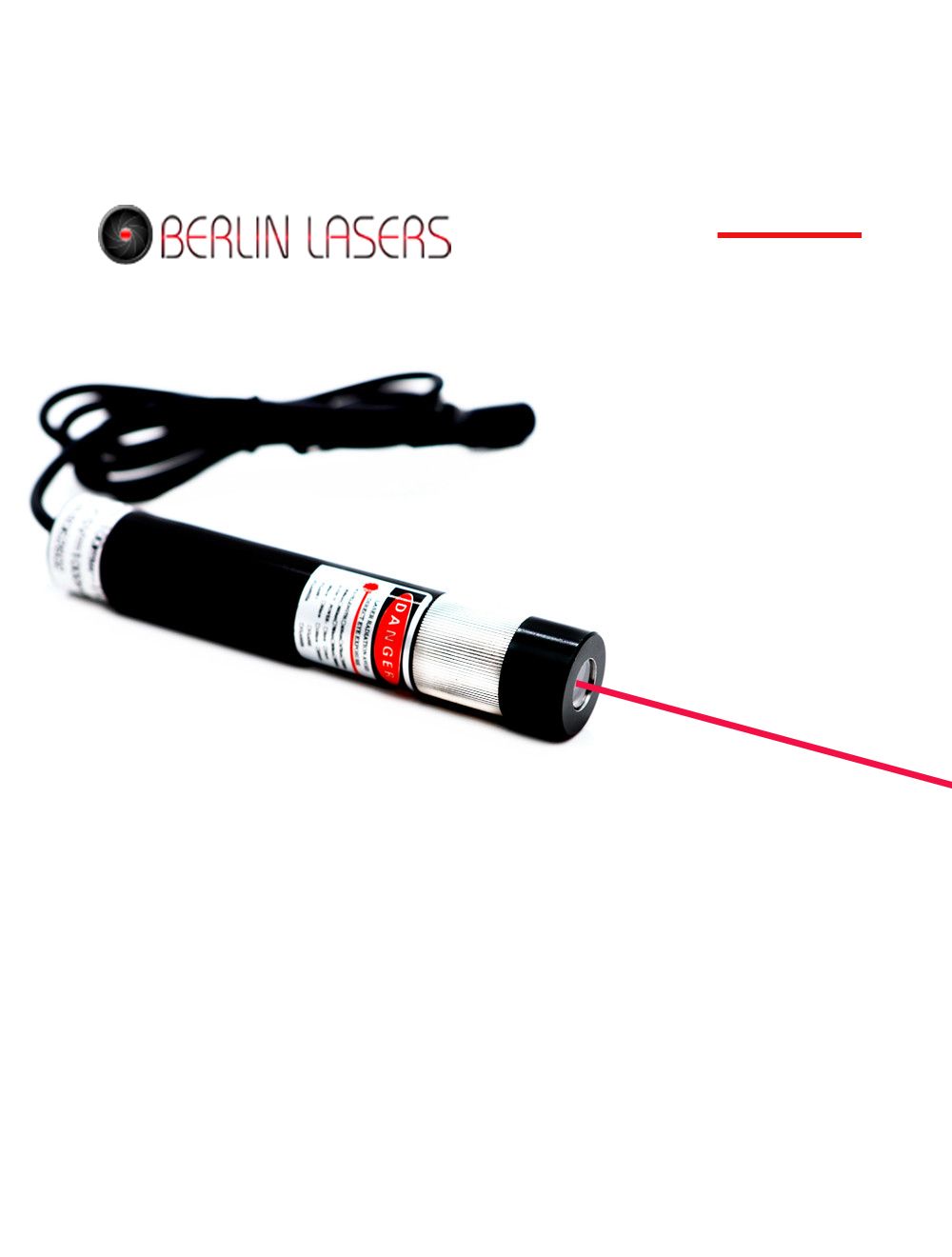

Industrial Line Aligned 638nm 5mW to 100mW Red Laser Line Generators
High purity beam emitting 638nm red laser line generator applies import 638nm red laser diode, qualified optic lens, and electric driving circuit board, projects the best quality red laser source for all industrial stabilized line aligning fields. It generates high linear quality and high fineness red line from beam aperture. After easy use of external electric power source and mounting onto industrial device, 638nm red laser module makes quick response and good direction line alignment for lab, institute and colleges.
- Buy 3 for $100.99 each and save 2%
- Buy 5 for $98.99 each and save 4%
- Buy 10 for $96.99 each and save 6%
Anodized aluminum alloy housing made 638nm red laser line generators get featured advantages of ultra compact design, low production cost, high precision and good team stability. Cooperating with qualified glass coated lens or Powell lens within 10 to 110 degree, after strict laser beam stability tests, it achieves good laser light cycling use, and the most reliable red line aligning source for industrial and high tech line measurements.
Key features:
Import 638nm red laser diodes within 5mW to 100mW with metal heat sink cooling system and APC, ACC driving circuit assures increasing stability red line alignment, no tube burning out or damage.
5V, 9V 1000mA AC/DC adapter supports 638nm red laser module projects continuous red laser beam and red line emission, no affect by increasing temperature and serious electric current impact as well.
Adjustable focus optic lens enables high speed red laser light concentration, and generates increasing fineness and brightness red line alignment.
16mm and 26mm diameter anodized aluminum alloy housing made 638nm red laser assures easy installation, wide operating temperature stabilization, and stable performance under moving or calibration.
CW or pulsing laser selectable
Technical data:
| Item | Red Laser Line Generators |
| Wavelength (nm) | 638nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2mm; At 2m distance: <2mm |
| Beam divergence (mrad) | 2.5mrad |
| Beam mode (before optics) | TEM00 |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 638nm red laser line generator and 1 ea AC/DC adapter
Applications: textile garment processing, laser cutting machine, laser car wheel alignment, sand milling, lumber machine
Note: Any operation of high power 635nm red laser up to 50mW to 100mW generates powerful red laser radiation and reflection. It might cause thermal energy hurt to human eyes and retina. Please remember to wear correct laser safety goggles and avoid eye exposure to beam aperture so as to get free and secured line alignment constantly.
