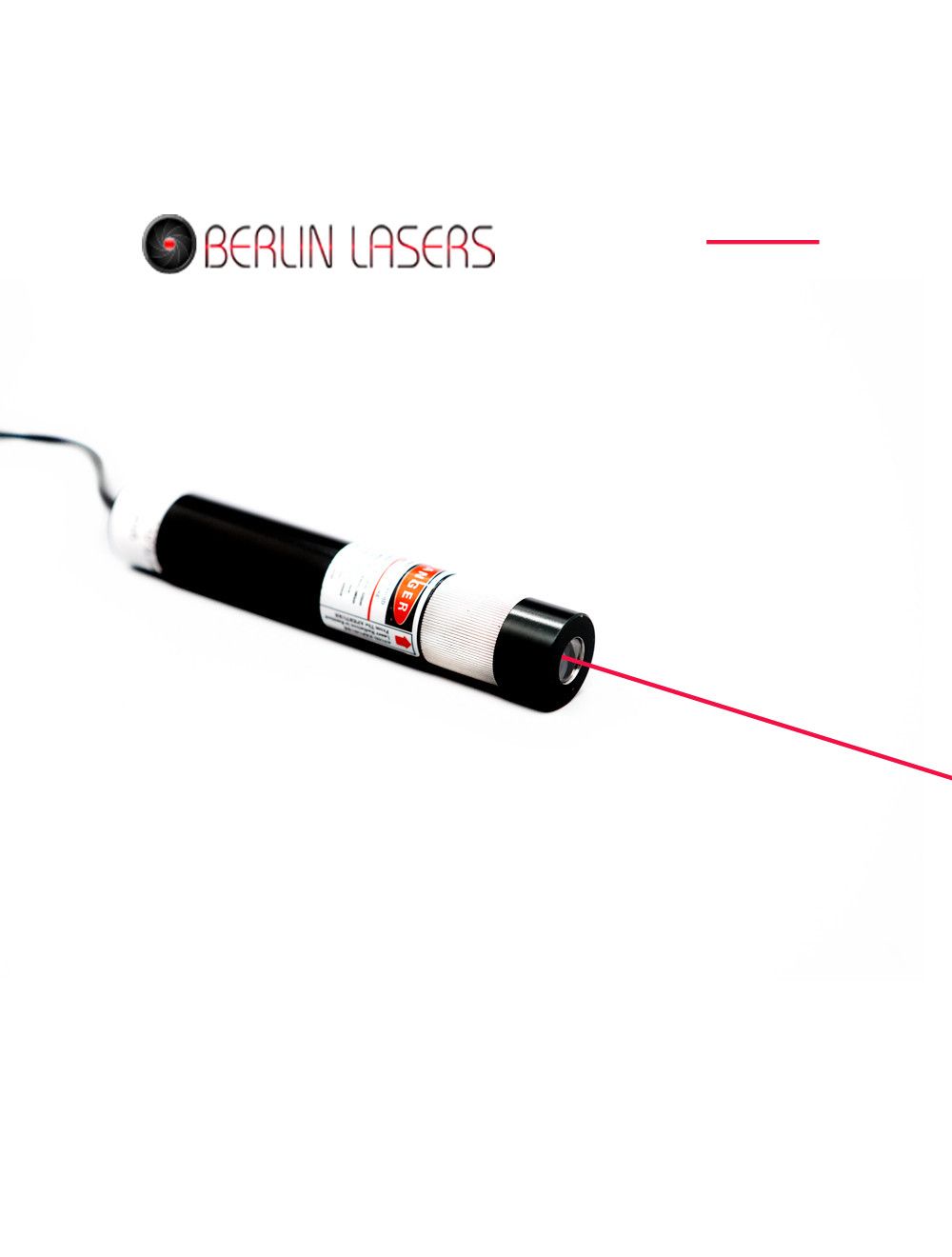

Gaussian Beam 660nm Red Laser Line Generator
Employing qualified glass coated lens and import 660nm red laser diode inside metal housing tube, 660nm red laser line generator is being made into an industrial stabilized and increasing stability red line alignment in continuous use. Direct diode emission made 660nm red laser module allows easy installation and adjustment of laser beam focus, assuring increasing accuracy and good direction red laser line source for prominent institutes, labs, and colleges.
- Buy 3 for $67.98 each and save 3%
- Buy 5 for $65.98 each and save 6%
- Buy 10 for $63.98 each and save 9%
Direct diode emission 660nm red laser line generator provides low cost and high stability red line alignment.
Compact structure made 660nm red laser module integrates qualified 660nm red laser diode, glass coated lens and thermal emitting system, achieving the best quality red laser light source and high fineness red line alignment. It provides the best red laser line source for industrial laser line alignment and scientific research works.
Import 660nm red laser diode assures increasing stability line alignment. Within 5mW to 100mW, equipping with metal heat sink cooling system and APC, ACC driving circuit board, 660nm red laser line generator assures perfect thermal emitting and up to 85% beam stability line alignment in continuous use.
Glass coated lens with wide fan angles fulfills high fineness line alignment. Within 10°to 110°fan angles, 660nm red laser module achieves high linear quality red line emission, no light decay or blur. Easy adjustment of laser beam focus assures increasing accuracy line alignment in distance.
AC/DC adapter assures continuous line alignment stably. 5V, 9V 1000mA DC power supply assures continuous red laser beam and red line projection, no manual labor force input and no mistake line alignment.
Technical Parameter:
| Item | Gaussian Beam Red Laser Line Generator |
| Wavelength (nm) | 650nm |
| Output power (mW) | 5mW-100mW |
| Available Fan Angle (degree) | 10°- 110° |
| Beam diameter at aperture (mm) | <2.0mm; at 2m diameter: <2.0mm |
| Beam divergence (mrad) | 5 mrad |
| Beam mode | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | 5mW-20mW:DC＝5V; 30mW-100mW:DC＝9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 15℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | 5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm |
| Expected lifetime (hours) | ≥8000 hours |
| Warranty | 6 months |
Packing list: 1 pc Gaussian Beam 660nm red line laser module and 1 pc AC/DC adapter
Applications: laser cutting machine, sand milling, lumber machine, textile garment processing and industrial line alignment
Note: For operating of high power gaussian beam 660nm red laser line generator up to 50mW to 100mW, do remember to avoid any thermal energy hurt to eyes and wear correct laser safety goggles. Avoid eye exposure to laser beam aperture, get secured and free red line alignment.
