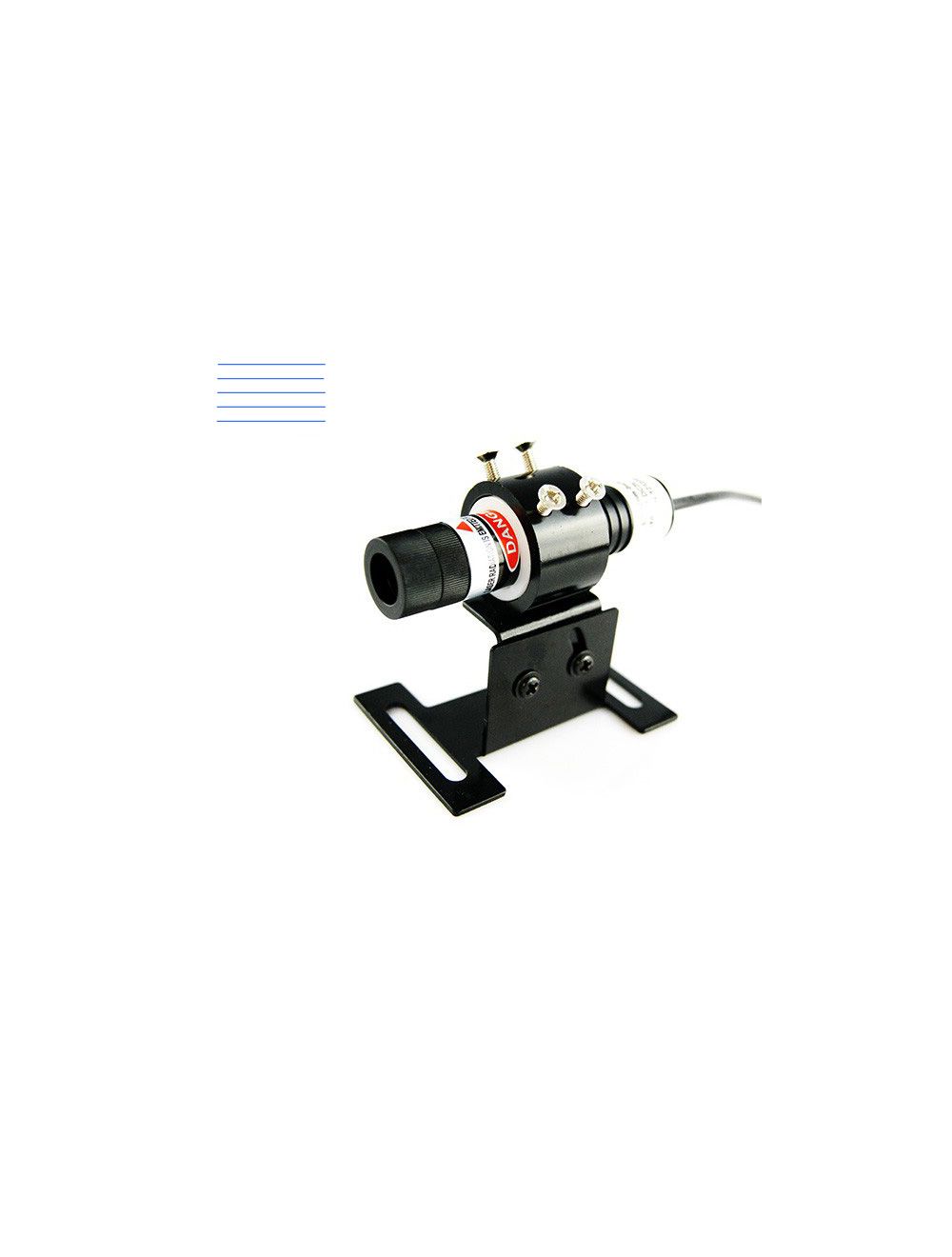

445nm Blue Parallel Line Laser Alignment
445nm blue parallel line laser alignment gets moderate brightness blue laser beam emission from 445nm blue laser diode, providing highly stable and reliable blue parallel line laser source at the most competitive price and the most reliable performance. This wide range output power mad blue parallel line laser module is widely used for all industrial, construction and high tech work fields efficiently.
- Buy 3 for 285,99 $US each and save 1%
- Buy 5 for 281,99 $US each and save 3%
- Buy 10 for 277,99 $US each and save 4%
445nm blue parallel line laser alignment integrated import 445nm blue laser diode, APC electric driving circuit, qualified glass coated cylindrical lens, and metal heat sink cooling system into quite compact structure aircraft used aluminum housing, generating the most stable and reliable blue parallel line pattern laser beam efficiently and conveniently. This direct diode emission blue parallel line laser module gets great applications by prominent university, institute and scientific research center etc.
Key features:
● Wide range output power from 5mW to 100mW (highest output power up to 1000mW also available).
● Constant electric current from external DC input power supply, protecting from strong interference and static electricity.
● Qualified glass cylindrical lens gains up 80% photoelectric transmittance, equipped with front laser beam aperture glass window for moisture proof and cycling used of optic light for parallel line laser alignment operation.
● Adjustable focus design improves parallel line alignment accuracy easily.
● Multiple size laser tube diameters of 12mm*75mm, 16mm*75mm and 38mm*160mm, fulfilling effective thermal stabilization.
Technical data:
| Item | Blue Parallel Line Laser Alignment |
| Wavelength | 445nm |
| Output power | 5mW-100mW (up 1000mW also available) |
| Laser safety class | IIIa, IIIb |
| Fan angle | 0.02mrad |
| Beam diameter at aperture | 8mm, 20mm |
| Laser dimension | 12mm*75mm, 16mm*75mm, 38mm*160mm |
| Laser Power Supply | DC5 V, DC12V, DC24, AC90-220V |
| Serving lifetime | up 8,000 hours |
| Warranty Period | 180 Days |
Packing List:
1. 445nm blue parallel line laser alignment
2. DC input power supply
Applications:
Import laser diode made Berlinlasers 445nm blue parallel line laser alignment gets wide applications in long distance tunnel through positioning, bridge cranes, paper mills, roller and web handling systems, steel mill, aligning tracks and guide rails, material processing and driving system etc.
445nm blue parallel line laser module is also being used as a monochromatic light source, available with high degree of parallelism for industrial version and other industrial automation perspective, teaching, lab experiment etc. For high power and OEM blue parallel line lasers, please contact us via email support@berlinlasers.com.
