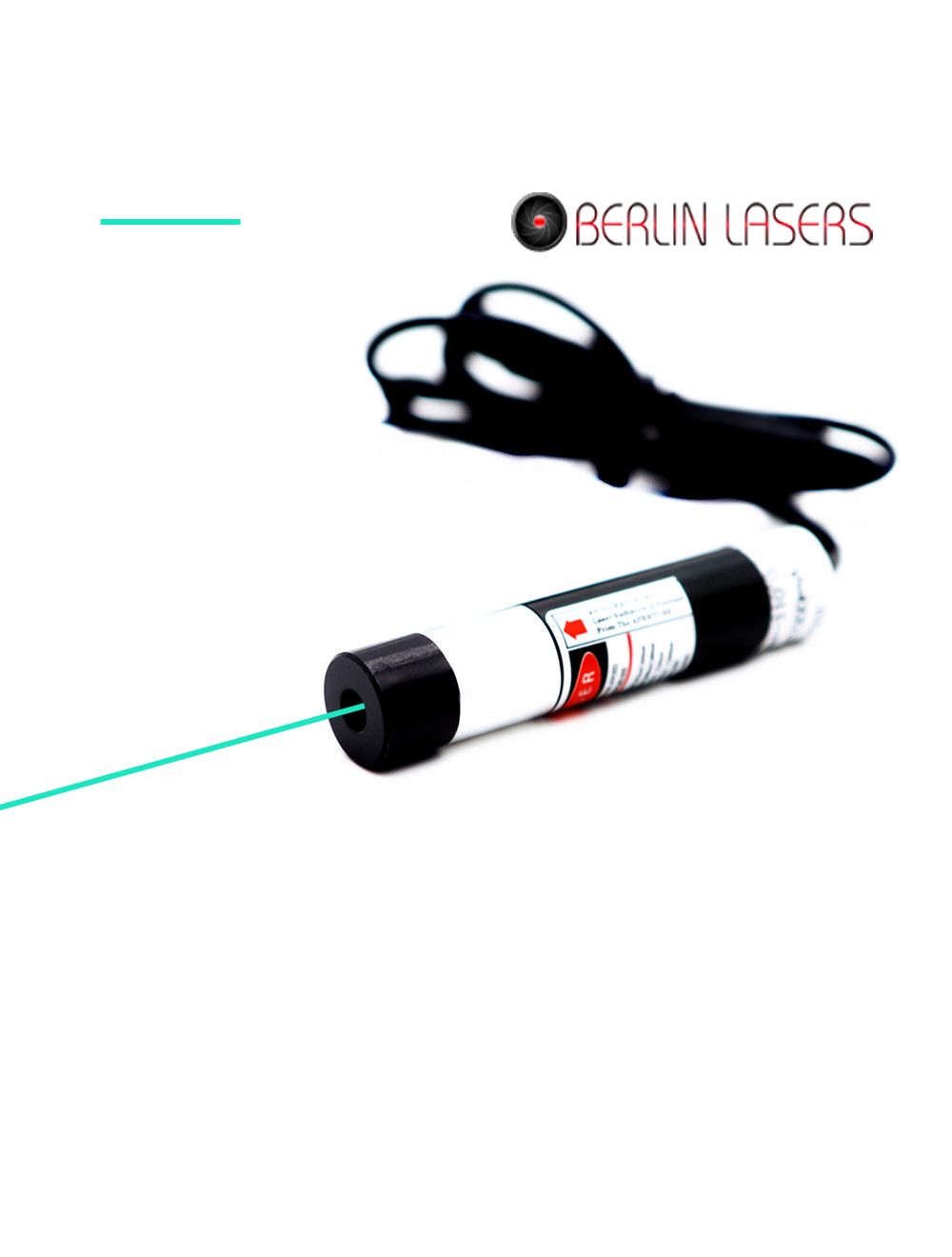

Direct Diode 505nm 5mW to 100mW Green Line Laser Modules
Direct diode emission made 505nm green line laser modules get less brightness green laser light than 532nm green DPSS laser. Being made with metal heat sink cooling system, qualified optic lens and APC, ACC driving circuit board, configured with high duration metal housing tube, it achieves increasing laser beam stability and high level of accuracy and brightness green reference line projection for high tech, labs and institutes etc.
- Buy 3 for $154.99 each and save 1%
- Buy 5 for $152.99 each and save 3%
- Buy 10 for $150.99 each and save 4%
Employed by an import 505nm green laser diode inside durable anodized aluminum alloy housing tube, industrial stabilized 505nm blue line laser module enables superior nice thermal conductivity, and wide range operating temperature stabilization. Under operation with correct use of output power and optic lens fan angles, and easy use of external electric power source, laser line generator assures constant green laser light source emission and fulfills the tasks of high level of accuracy line alignment use.
Key features:
16mm and 26mm diameter metal housing tube gets sufficient space for tube thermal emitting, easy installation and quick green line projection.
Import 505nm green laser diodes within 5mW to 100mW assures highly visible green laser beam emission, and highly clear green line alignment for multiple application fields.
5V, 9V 1000mA AC/DC adapter supports green laser line generator with constant green line projection, maximum installed distance of 3 meters, and highly stable measurement under overheating and overcorrect impact.
Qualified glass coated lens and Powell lens within 10 to 110°projects high quality and high fineness green line projection. Easy screw of adjustable focus optic lens ensures increasing brightness and accuracy measurement in distance.
APC, ACC driving circuit board protects 505nm green laser with highly reliable performance, reduced possibility of tube burning out or damage, long serving lifetime.
CW or pulsing laser selectable
Technical data:
| Item | Green Line Laser Modules |
| Wavelength (nm) | 505nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2.8mm; At 2m distance: <2.5mm |
| Beam divergence (mrad) | 1mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 505nm green line laser module and 1 ea AC/DC adapter
Applications: industrial line alignment, biological, laser medical treatment, laser pumping, scientific experiment etc
Note: For operation of high power 505nm green laser up to 50mW to 100mW, it projects powerful green laser radiation and reflection. In order to avoid thermal energy hurt to human eyes and retina, please remember to wear correct laser safety goggles for all laser line alignment use.
