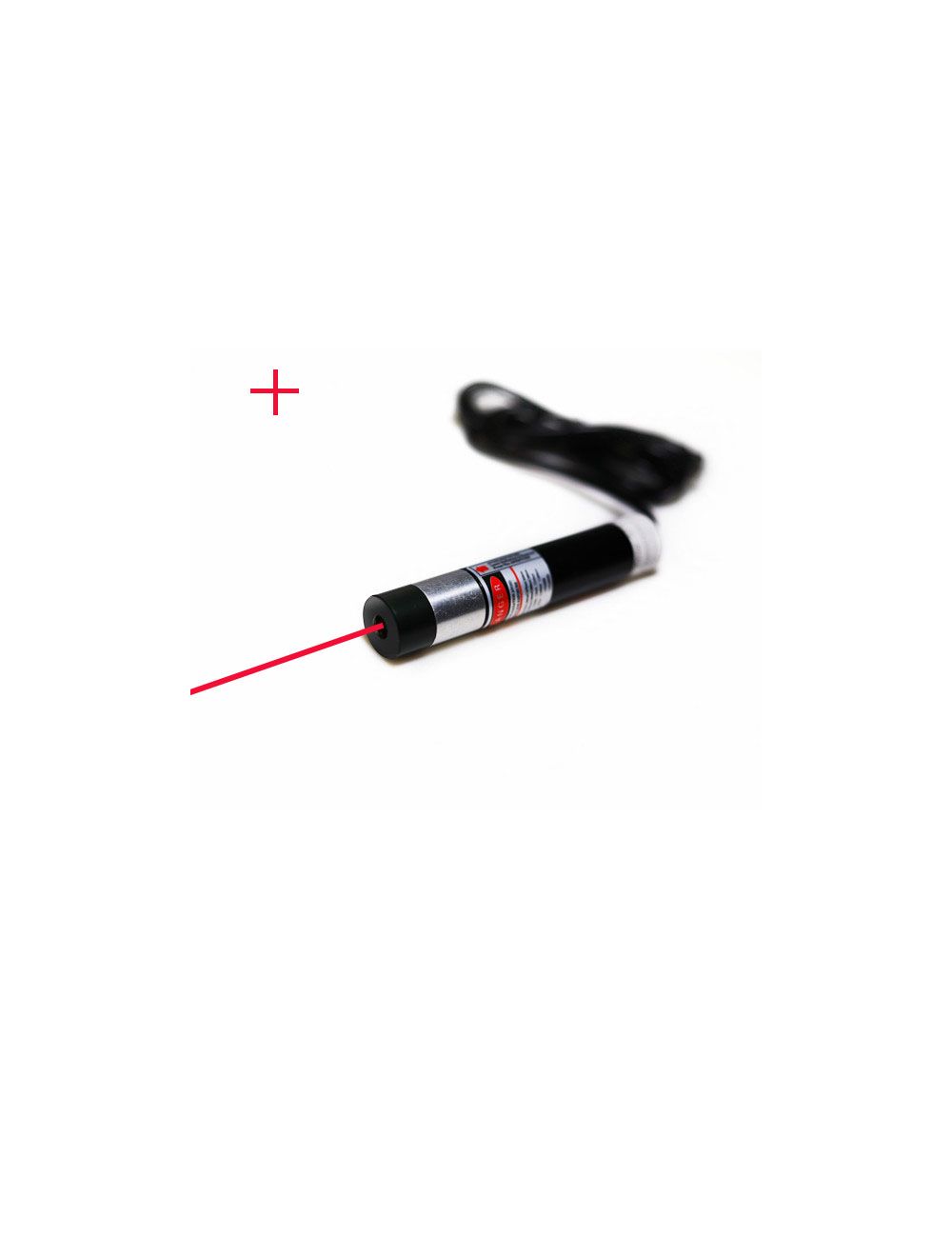

Adjusted Fineness 638nm 5mW to 100mW Red Cross Line Laser Modules
High purity red laser light emitting 638nm red cross line laser module applies import 638nm red laser diode, qualified glass coated lens and electric driving circuit board, project high purity and high brightness red laser light emission of beam aperture. After connecting with external electric power source and proper mounting onto machine or device, 638nm red laser makes quick response and good direction cross line measurement for both industrial and high tech fields.
- Buy 3 for $110.99 each and save 2%
- Buy 5 for $108.99 each and save 4%
- Buy 10 for $106.99 each and save 5%
Direct diode emission 638nm red cross line laser module gets featured advantages of ultra compact design, low production cost and good beam stability. Qualified glass coated lens is equipping with a glass window, after up to 24 hours aging preventing and beam stability test, it generates the most complex two perpendicular red lines with accurate 90 degrees, no effect of moisture or dust as well.
Key features:
Import 638nm 5mW to 100mW red laser diode with metal heat sink cooling system and APC, ACC driving circuit board assures 40% improvement of laser beam stability and up 8,000 hours serving lifetime.
5V, 9V 1000mA AC/DC adapter support 638nm red laser with constant red laser beam and red cross line emission, stable performance under overheating or over current impact.
Adjustable focus optic lens enables immediate red laser light concentration, increasing accuracy and brightness red cross line alignment in distance.
Durable 16mm or 26mm diameter metal tube red laser module enables easy installation, wide operating temperature stabilization and quick response.
10, 15 and 110 degree glass coated lens assures different dimension red cross line source emission, applicable for multiple cross line alignment fields.
CW or pulsing laser selectable
Technical data:
| Item | Red Cross Line Laser Modules |
| Wavelength(nm) | 638nm |
| Output power(mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angel (degrees) | 10°,15°,110° |
| Beam diameter at aperture(mm) | 2m beam diameter: <2.2mm |
| Beam divergence(mrad) | 5 mrad |
| Beam mode | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | ≥8,000 hours |
| Warranty | 6 months |
Packing list: 1 ea 638nm red cross line laser module and 1 ea AC/DC adapter
Applications: laser medical therapy device, laser alignment for screen printing system, heat transfer machine, laser car wheel alignment, high tech
Note: For operation of high power 638nm red laser up to 50mW to 100mW, it generates powerful red laser radiation and thermal energy hurt to human eyes or retina. Please take laser safety measure and wear correct laser safety goggles so as to achieve secured and free measurement.
