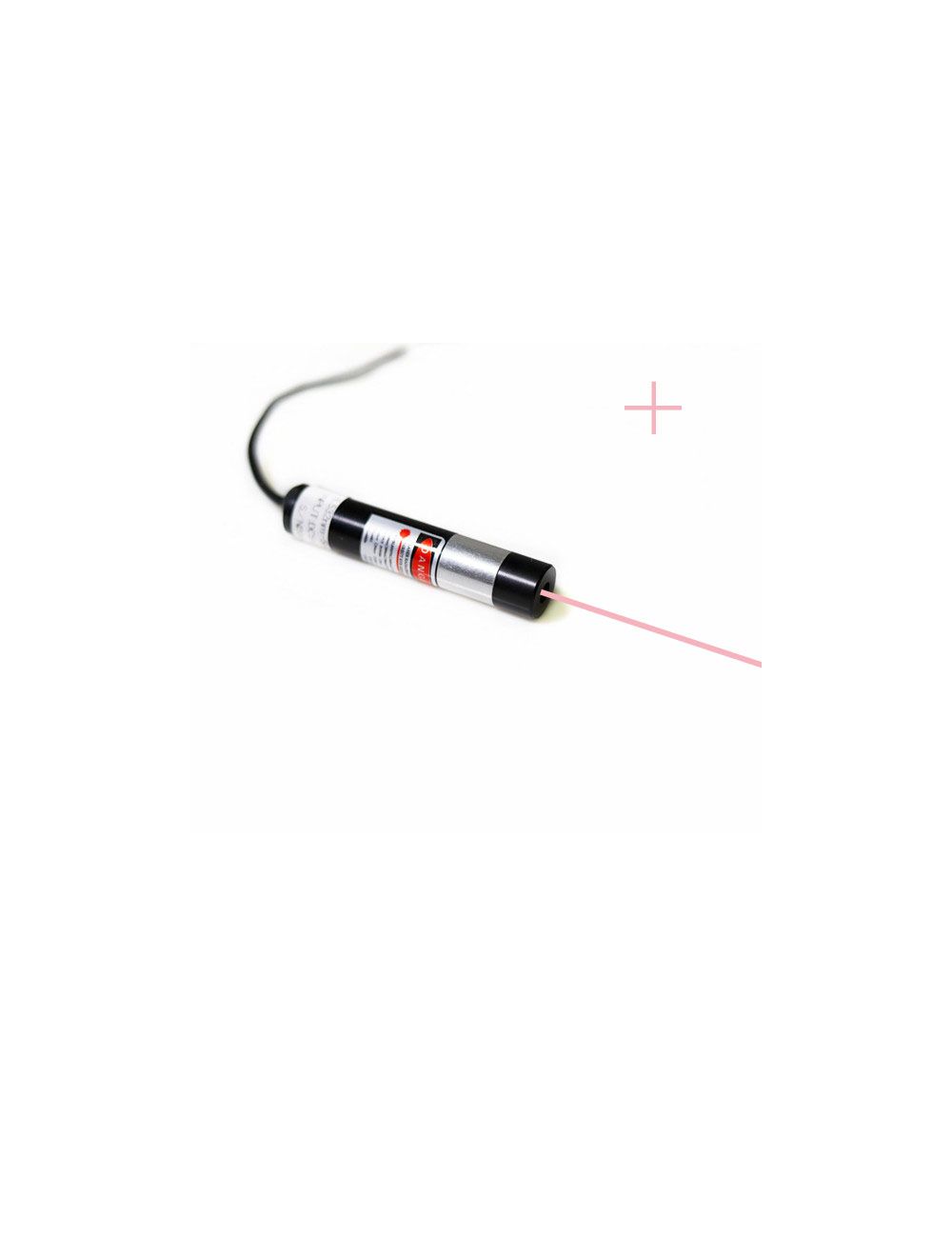

Adjustable Focus Lens 905nm 5mW to 500mW Infrared Cross Line Laser Modules
Continuous wavelength 905nm infrared cross line laser modules apply import 905nm infrared laser diode, qualified glass coated lens and APC, ACC driving circuit board, generate high photoelectric ability infrared laser source of beam aperture. Cooperating with qualified glass coated lens and glass window, after up to 24 hours beam stability tests, 905nm infrared laser assures high accuracy and low cost infrared crosshair alignments for all night version fields.
- Buy 3 for $127.99 each and save 2%
- Buy 5 for $125.99 each and save 3%
- Buy 10 for $123.99 each and save 5%
Direct diode emission 905nm infrared cross line laser modules are featured by ultra compact design, good beam stability, good direction and long lifetime. The durable anodized aluminum alloy housing tube enables convenient installation, wide operating temperature, and no manual labor force relying infrared cross line alignment for labs, institutes and colleges.
Key features:
Import 905nm 5mW to 500mW infrared laser diodes with metal heat sink and APC, ACC driving circuit board ensure excellent thermal emitting, up to 85% beam stability and long operating lifetime.
Adjustable focus optic lens gets high concentration infrared laser light emission, and efficient conversion of high fineness and straightness infrared vertical and horizontal lines emission in distance.
AC/DC adapter connected 905nm infrared lasers enable constant infrared laser beam and infrared cross line projection, without light decay or dim in use.
CW or pulsing laser selectable
Technical data:
| Item | Infrared Cross Line Laser Modules |
| Wavelength(nm) | 905nm |
| Output power(mW) | 5mW 50mW 100mW 200mW 300mW 400mW 500mW |
| Available Fan Angel (degrees) | 10°,15°,110° |
| Beam diameter at aperture(mm) | <2.5mm |
| Beam divergence(mrad) | 6 mrad |
| Beam mode | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | ≥8,000 hours |
| Warranty | 6 months |
Packing list: 1 ea 905nm infrared cross line laser module and 1 ea AC/DC adapter
Applications: night version cross line measurement, spectrum analysis, scientific research, lab experiment, infrared laser sight, laser medical therapy device
Note: Human eyes cannot capture any powerful infrared laser radiation and reflection of 905nm infrared lasers. Users should avoid eye exposure to beam aperture and wear correct laser safety goggles so as to make free and secured alignment constantly.
