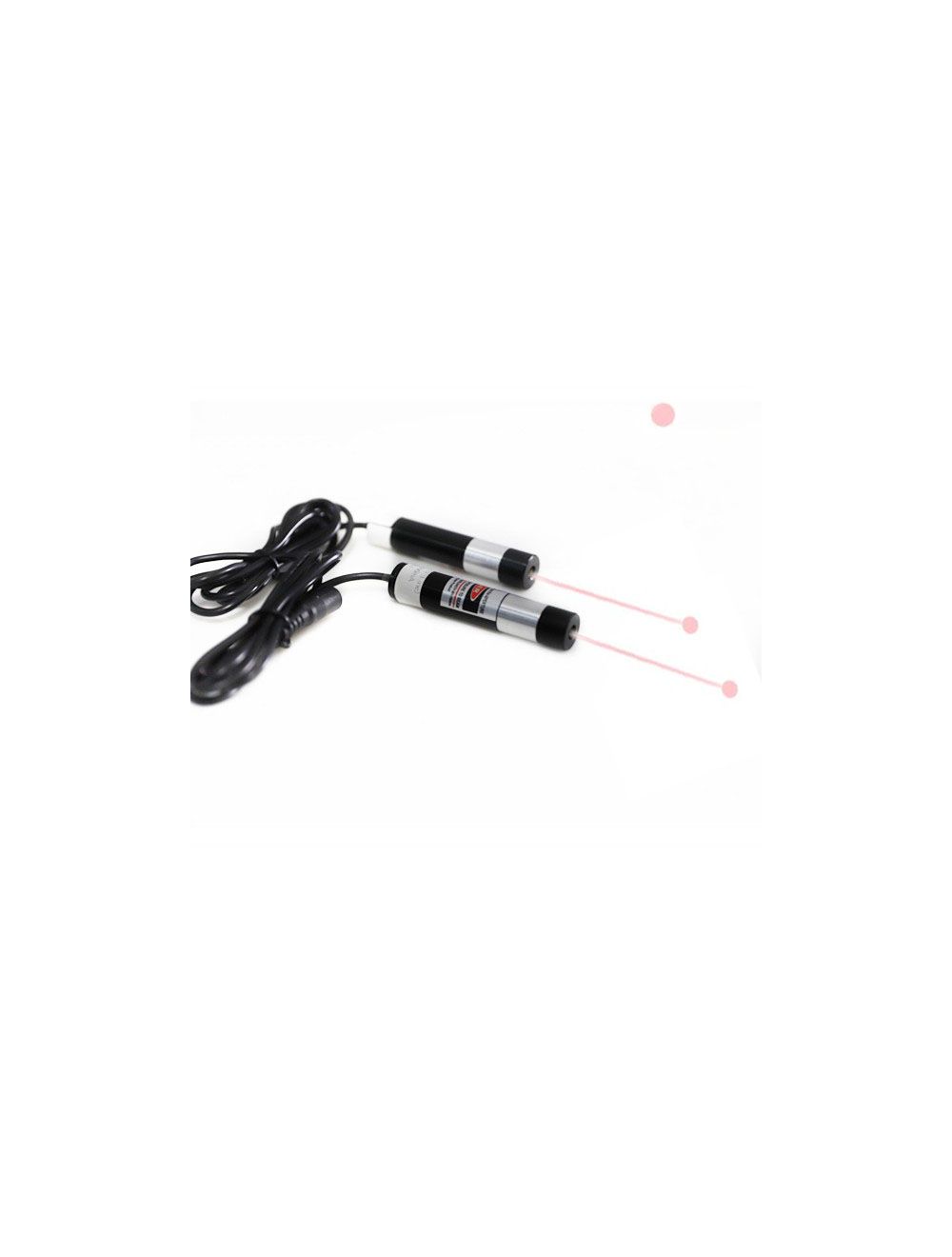

930nm 100mW 200mW 300mW 400mW 500mW Infrared Laser Diode Modules
Configuring with import 930nm infrared laser diode, metal heat sink cooling system and glass coated lens, high duration and compact tube designed infrared laser diode modules assures intense and powerful infrared laser beam emission, and high stability infrared reference dot projection in constant use. After proper equipment with night version device and correct use of external electric power source, it provides continuous infrared dot aligning source for labs, institutes and labs etc.
- Buy 3 for $137.99 each and save 1%
- Buy 5 for $135.99 each and save 3%
- Buy 10 for $133.99 each and save 4%
Night version designed 930nm infrared laser diode modules gets featured advantages of ultra compact design, long operating lifetime, low production cost and easy operation. Employing an import 930nm infrared laser diode with APC, ACC driving circuit board, it keeps constant output power and electric current supply. Easy screw of adjustable focus optic lens ensures powerful infrared laser light focusing and increasing brightness and accuracy infrared laser dot alignment constantly.
Key features:
Wide output power of 100mW to 500mW provides users high intensity and high photoelectric ability infrared laser light emission, and generates highly clear infrared dot alignment within 100 to 1000 meters in distance.
5V, 9V 1000mA AC/DC adapter supports 930nm infrared laser diode modules with constant infrared laser beam and infrared laser dot projection, no affect by overheating and over current.
16mm and 26mm anodized aluminum alloy housing tube ensures convenient installation, and quick infrared laser dot projection onto any raw material surface.
Advanced use of glass coated lens with glass window in front of beam aperture protects 930nm infrared laser diode module under moisture or dust, and keeps highly stable IR dot projection and no decay light in continuous use.
CW and pulsing laser selectable
Technical data:
| Item | Infrared Laser Diode Module |
| Wavelength (nm) | 930nm |
| Output power (mW) | 100mW 200mW 300mW 400mW 500mW |
| Laser Class | IIIb, IV |
| Beam divergence (mrad) | 6mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| TTL Modulation | No |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA; |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 930nm infrared laser diode module and 1 ea AC/DC adapter
Applications: measurement, spectrum analysis, scientific research, lab experiment, laser communications
Note: Any operation of invisible beam emitting 930nm infrared laser diode modules brings potential thermal energy hurt to human eyes and retina. Please remember to wear correct infrared laser safety goggles and glasses so as to assure easy and safe infrared dot alignment continuously.
