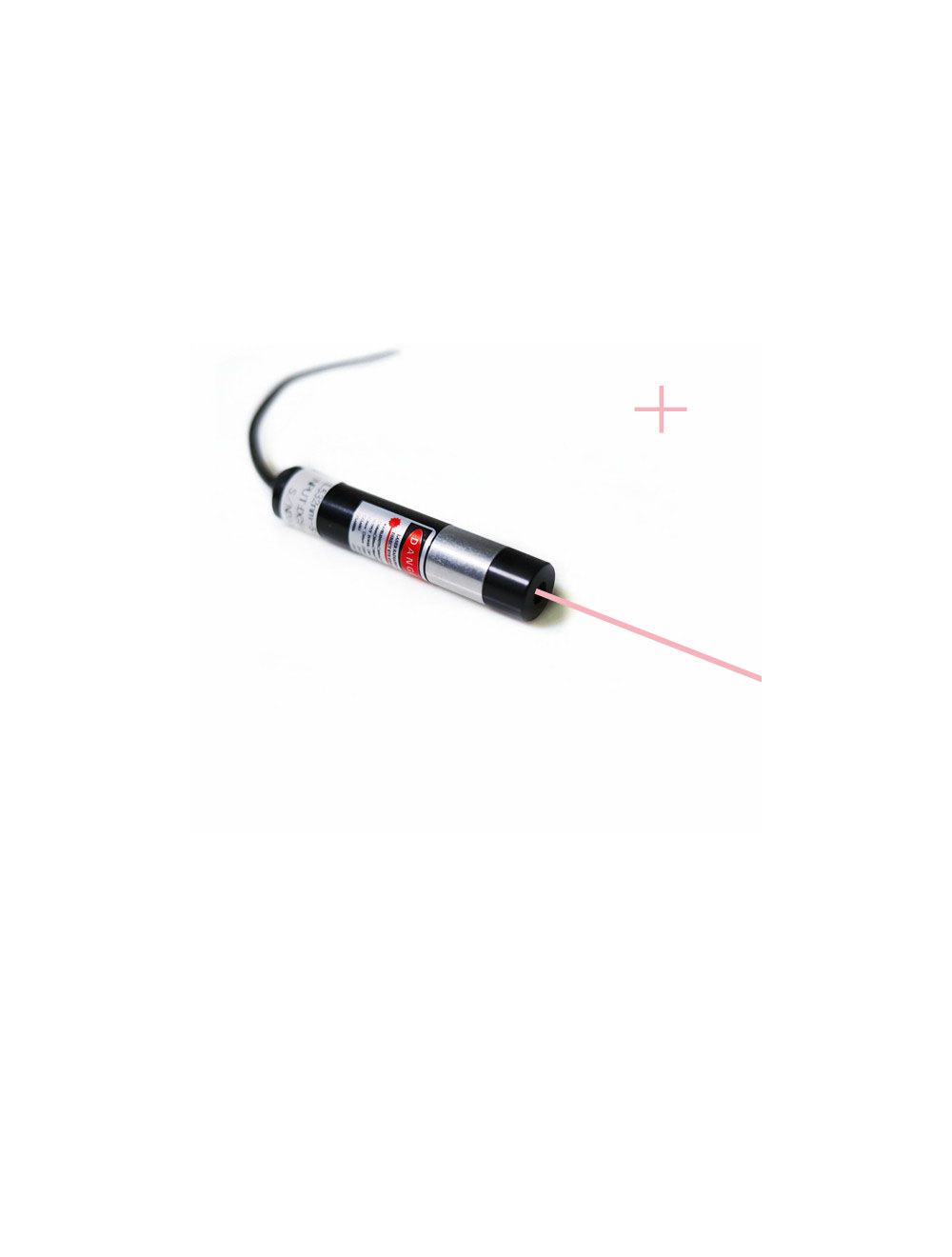

850nm 5mW to 500mW Infrared Cross Line Laser Modules
Invisible beam emitting 850nm infrared cross line laser modules apply import 850nm infrared laser diode, qualified glass coated lens and electric driving circuit board, project high intensity and up to 80% high photoelectric ability infrared laser light source of beam aperture. After professional use of night version device and electric power source, infrared laser makes constant and high accuracy infrared vertical and horizontal lines generation for all night version fields clearly.
- Buy 3 for $107.99 each and save 2%
- Buy 5 for $105.99 each and save 4%
- Buy 10 for $103.99 each and save 5%
Ultra compact designed 850nm infrared cross line laser modules are featured by durable structure, easy operation, good coherence and good direction. Employed by qualified glass coated lens, after up to 24 hours aging preventing test and special use of glass window, it provides high linear quality and high fineness infrared cross line source for labs, institutes and colleges.
Key features:
Import 850nm 5mW to 500mW infrared laser diodes with metal heat sink and APC, ACC driving circuit boards get excellent thermal emitting, constant infrared cross line emission and long operating lifetime.
5V, 9V 1000mA AC/DC adapter supports infrared cross laser with constant infrared cross line alignment within 8 to 10 hours, no effect of overheating and over current impact.
Durable 16mm and 26mm diameter metal housing tube infrared laser enables easy installation, no labor force input and stable infrared cross line alignment.
Glass coated lens with 10, 15 and 110 degree fan angles generates various dimension and high linear quality infrared cross line source, applicable for multiple night version cross line measurements.
CW or pulsing laser selectable
Technical data:
| Item | Infrared Cross Line Laser Modules |
| Wavelength(nm) | 850nm |
| Output power(mW) | 5mW 50mW 100mW 200mW 300mW 400mW 500mW |
| Available Fan Angel (degrees) | 10°,15°,110° |
| Beam diameter at aperture(mm) | <2.5mm |
| Beam divergence(mrad) | 6 mrad |
| Beam mode | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | ≥8,000 hours |
| Warranty | 6 months |
Packing list: 1 ea 850nm infrared cross line laser module and 1 ea AC/DC adapter
Applications: night version cross line alignment, laser medical surgery, Raman spectroscopy, intelligence system, scientific experiment
Note: Long wavelength 850nm infrared lasers project invisible and powerful infrared laser radiation and reflection, might causing serious thermal energy hurt to human eyes or retina. Do remember to wear laser safety goggles and avoid eye exposure to beam aperture so as to get easy and safe use of infrared lasers.
