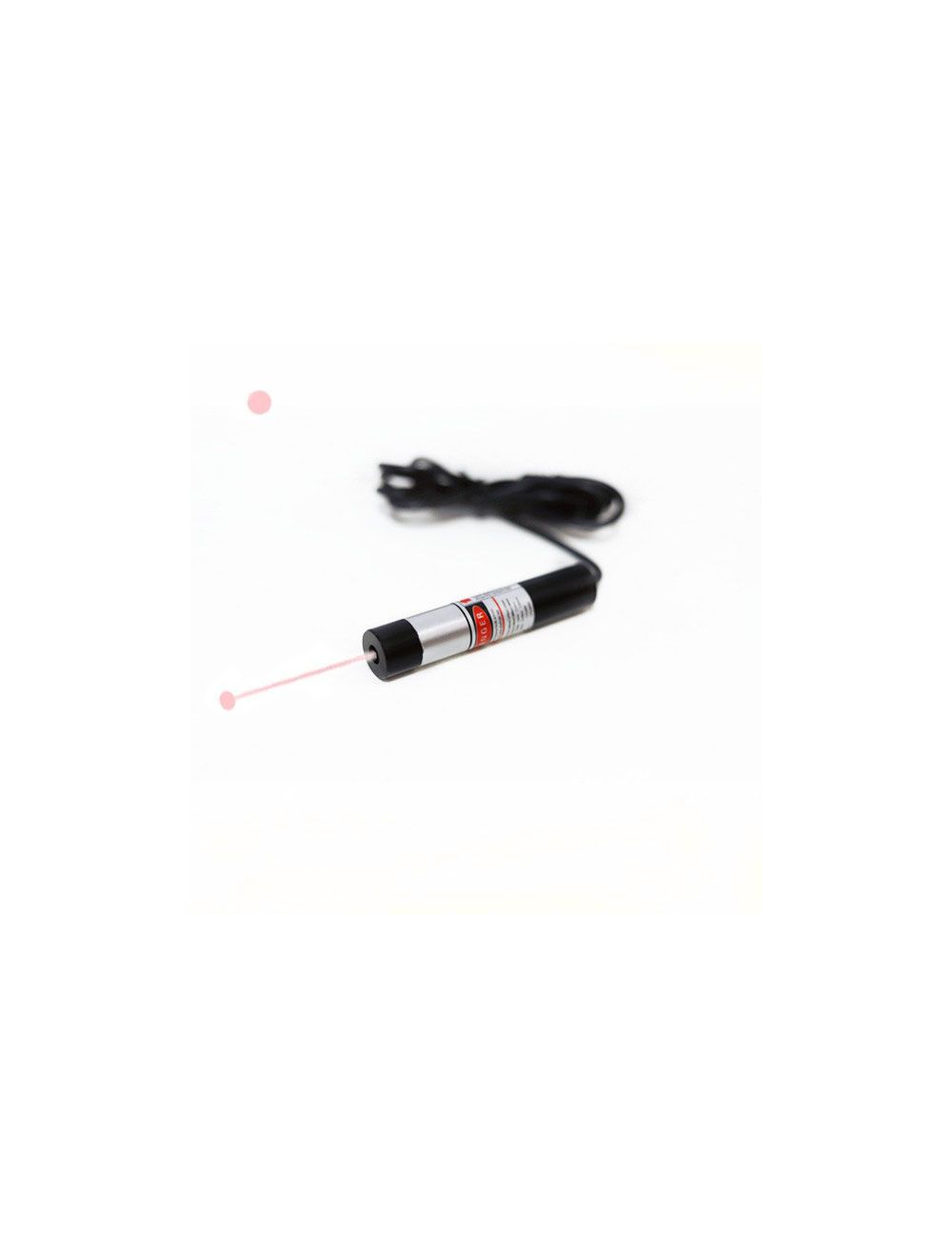

795nm 5mW to 100mW Infrared Laser Diode Modules
Under all night version application fields, 795nm infrared laser diode modules provide users the best quality infrared laser light source emission, and the most practically used infrared dot alignment. Employing import 795nm infrared laser diode, qualified glass coated lens, and electric driving circuit board, configured with highly durable anodized aluminum alloy housing tube, direct diode emission device of 795nm infrared laser assures the most reliable performance and most competitive price infrared dot alignment solution for prominent colleges, labs and institutes.
- Buy 3 for $97.99 each and save 2%
- Buy 5 for $95.99 each and save 4%
- Buy 10 for $93.99 each and save 6%
Invisible beam emitting 795nm infrared laser diode modules provide users the most precise and stable infrared dot generation for all night version application fields.
Import 795nm infrared laser diode assures at least 40% improvement of beam stability. Within 5mW to 100mW output power, configured with 16mm and 26mm diameter metal housing tube, 795nm infrared dot laser enables good thermal emitting and thermal conductivity, and stable IR dot projection under wide operating temperature ranges.
AC/DC adapter with 5V, 9V operating voltage assures continuous infrared laser beam emission, and continuous infrared dot alignment. No affect by overheating and over current, and no laser light decay within 8 to 10 hours use.
APC, ACC driving circuit board protects 795nm infrared laser diode module in the bets condition, and reduced tube burning out or damage in continuous use.
Special equipment with night version device makes high efficiency infrared laser light emission and converts into the clearest infrared dot indication.
Adjustable focus optic lens enables immediate infrared laser light concentration, and increasing accuracy and brightness infrared laser dot alignment.
CW or pulsing laser selectable
Technical data:
| Item | Infrared Laser Diode Module |
| Wavelength (nm) | 795nm |
| Output power (mW) | 5mW 10mW 20mW 30mW 50mW 80mW 100mW |
| Laser Class | IIIa, IIIb |
| Beam divergence (mrad) | 6mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| TTL Modulation | No |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA; |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 795nm infrared laser diode module and 1 ea AC/DC adapter
Applications: night version infrared laser sight, surveillance, DNA sequencing, cell sorting, optical instrument, spectrum analysis, interference, holography, and physics experiments
Note: Human eyes cannot observing any infrared laser beam and infrared laser dot of beam aperture. It might cause serious thermal energy hurt to human eyes and retina. Do not make any direct eye exposure to beam aperture. Please remember to wear infrared laser safety goggles and glasses so as to assure easy and safe IR dot alignment continuously.
