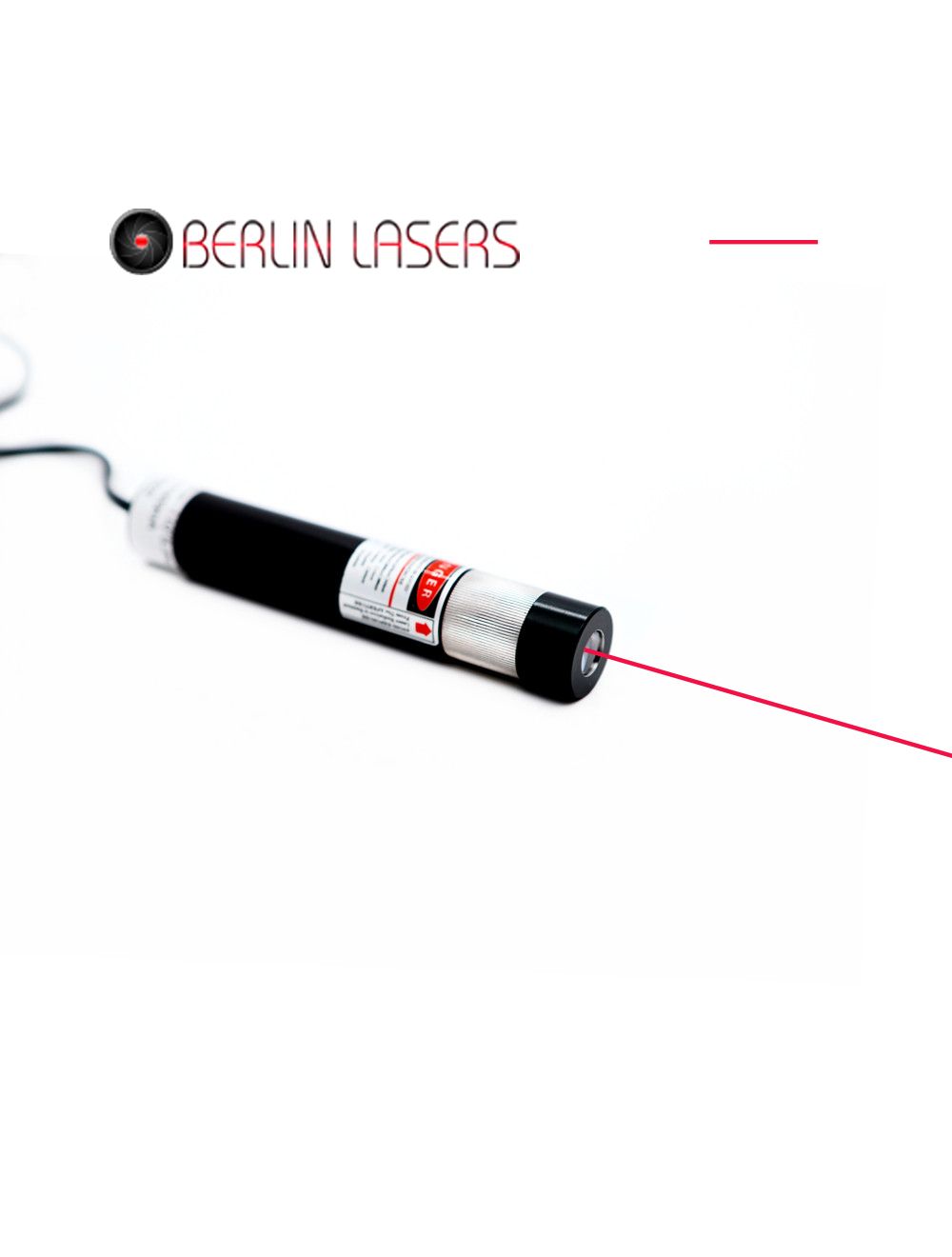

685nm 5mW to 100mW Red Laser Line Generators
685nm red laser line generator applies an import 685nm red laser diode, qualified optic lens, and electric driving circuit board, gets strong industrial stabilization, good thermal emitting, and low product cost red line measurement solutions for industrial and high tech fields. After easy use of an electric power source and gets proper installation, 685nm makes quick response and good direction red line alignment for multiple application fields.
- Buy 3 for $146.99 each and save 2%
- Buy 5 for $144.99 each and save 3%
- Buy 10 for $142.99 each and save 5%
Direct diode emission 685nm red laser line generator gets featured advantages of quick response, ultra compact design, easy operation and low production cost. Available with qualified glass coated lens or Powell lens, it generates high quality Gaussian beam or non Gaussian distribution red laser beam, and projects high level of accuracy and fineness red line alignment for lab experiment, institutes and colleges etc.
Key features:
Wide output power 685nm 5mW to 100mW red laser module with inner metal heat sink and APC, ACC driving circuit board assures excellent thermal emitting, high stability red line alignment within 8 to 10 hours, and no light decay or blur.
Quality glass coated lens or Powell lens within 10 to 110 degree projects high linear quality and high fineness red line with various line lengths and finenesses, enables fine and clear line generation within maximum work distance of 25 meters.
5V, 9V 1000mA AC/DC adapter supports 685nm red line laser modules with intense red laser light projection, and constant red line alignment, no effect of overheating or over current impact.
Adjustable focus lens enables the best quality red laser light concentration, increasing accuracy and fineness red line projection in distance.
CW or pulsing laser selectable
Technical data:
| Item | Red Laser Line Generators |
| Wavelength (nm) | 685nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2mm; At 2m distance: <2mm |
| Beam divergence (mrad) | 5mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 685nm red laser line generator and 1 ea AC/DC adapter
Applications: spectrum analysis, laser medical therapy device, textile garment processing, lab experiment etc
Note: For operation of high power 685nm red line laser up to 50mW to 100mW, it projects powerful and intense red laser light and serious thermal energy hurt. In order to avoid hurt to human eyes or retina, please remember to wear correct laser safety goggles and avoid eye exposure so as to keep safe and free line alignment.
