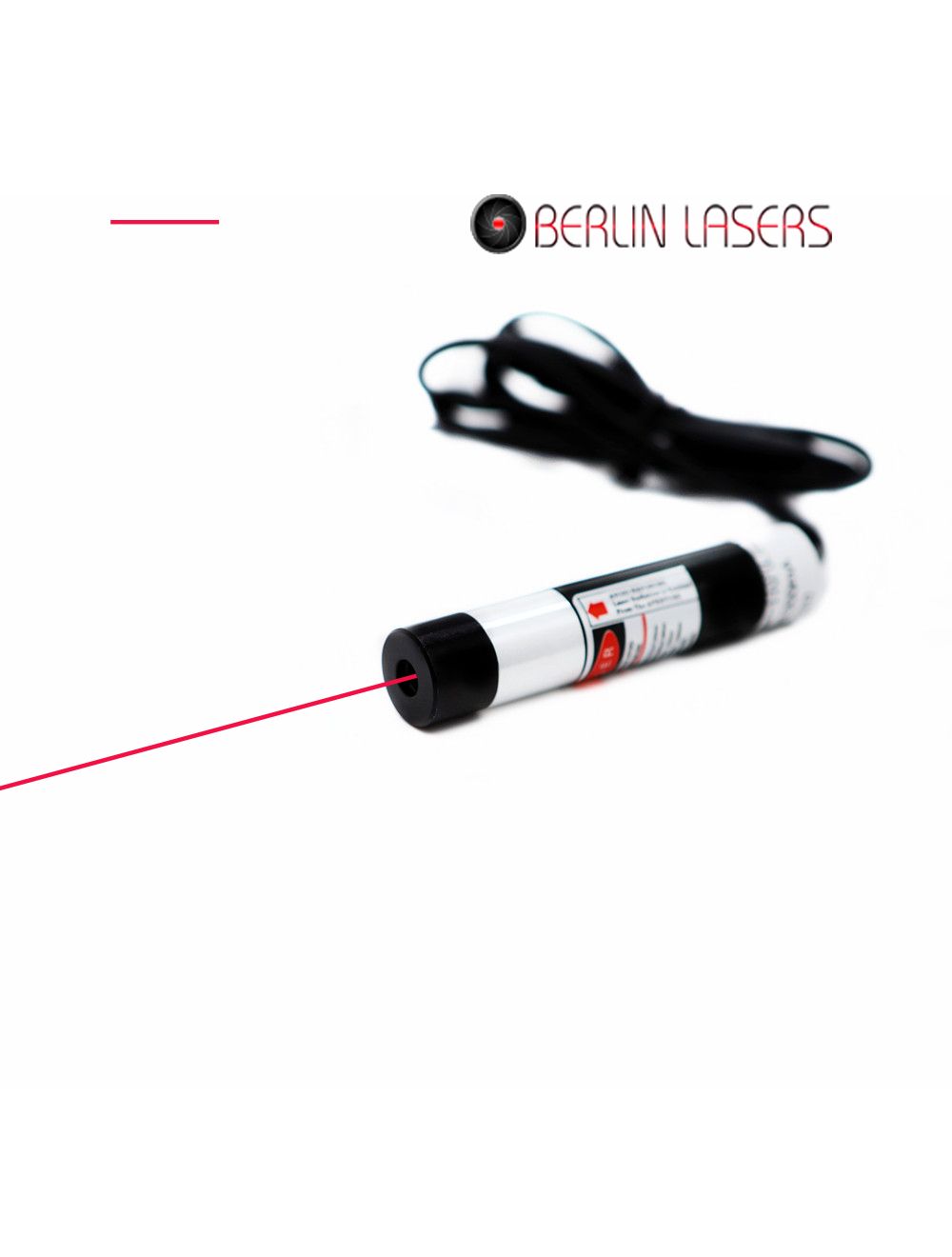

680nm 5mW to 100mW Red Laser Line Generators
Direct diode emission 680nm red laser line generators applies import 680nm red laser diode, qualified optic lens and APC, ACC driving circuit board, projects highly intense red laser beam and red line of laser beam aperture. Configured with ultra compact and durable metal housing tube, 680nm red laser module assures convenient installation, good direction and high precision red line alignment for both industrial and high tech line measurements.
- Buy 3 for $116.99 each and save 2%
- Buy 5 for $114.99 each and save 3%
- Buy 10 for $112.99 each and save 5%
High duration anodized aluminum alloy housing tube made 680nm red laser line generator makes the best use of qualified glass coated lens and Powell lens within 10 to 110 degree, generates Gaussian beam or Non gaussian distribution red laser beam. After generation of high linear quality and highly fine red line within various line lengths, it provides the best line aligning source for major labs, institutes and colleges.
Key Features:
Import 5mW to 100mW 680nm red laser diode with metal heat sink assures direct diode emission red laser light, increasing stability red reference line projection at various work distances.
AC/DC adapter supports 680nm red laser module with constant red laser beam emission, and no decay light red line alignment under overheating or over current impact as well.
Ultra compact 16mm or 26mm diameter anodized aluminum alloy housing tube allows convenient installation, good thermal emitting, no barrier and no track red line measurement.
APC, ACC driving circuit board ensures constant output power and electric current supply, up to 8000 hours long lifetime and no tube burning out or damage.
Adjustable focus optic lens enables rapid red laser light focusing, increasing fineness and brightness red line alignment within maximum distance of 25 meters and formal lighting.
CW or pulsing laser selectable
Technical data:
| Item | Red Laser Line Generators |
| Wavelength (nm) | 680nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2mm; At 2m distance: <2mm |
| Beam divergence (mrad) | 5mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 680nm red laser line generator and 1 ea AC/DC adapter
Applications: industrial line alignment, spectrum analysis, optical instrument, lab experiment, measurement and high tech etc
Note: For operation of high power 685nm red laser line module up to 50mW to 100mW, it projects powerful red laser radiation and thermal energy hurt to human eyes and retina. Please avoid eye exposure to beam aperture. Do remember to wear correct laser safety goggles until getting secured and fine line alignment constantly.
