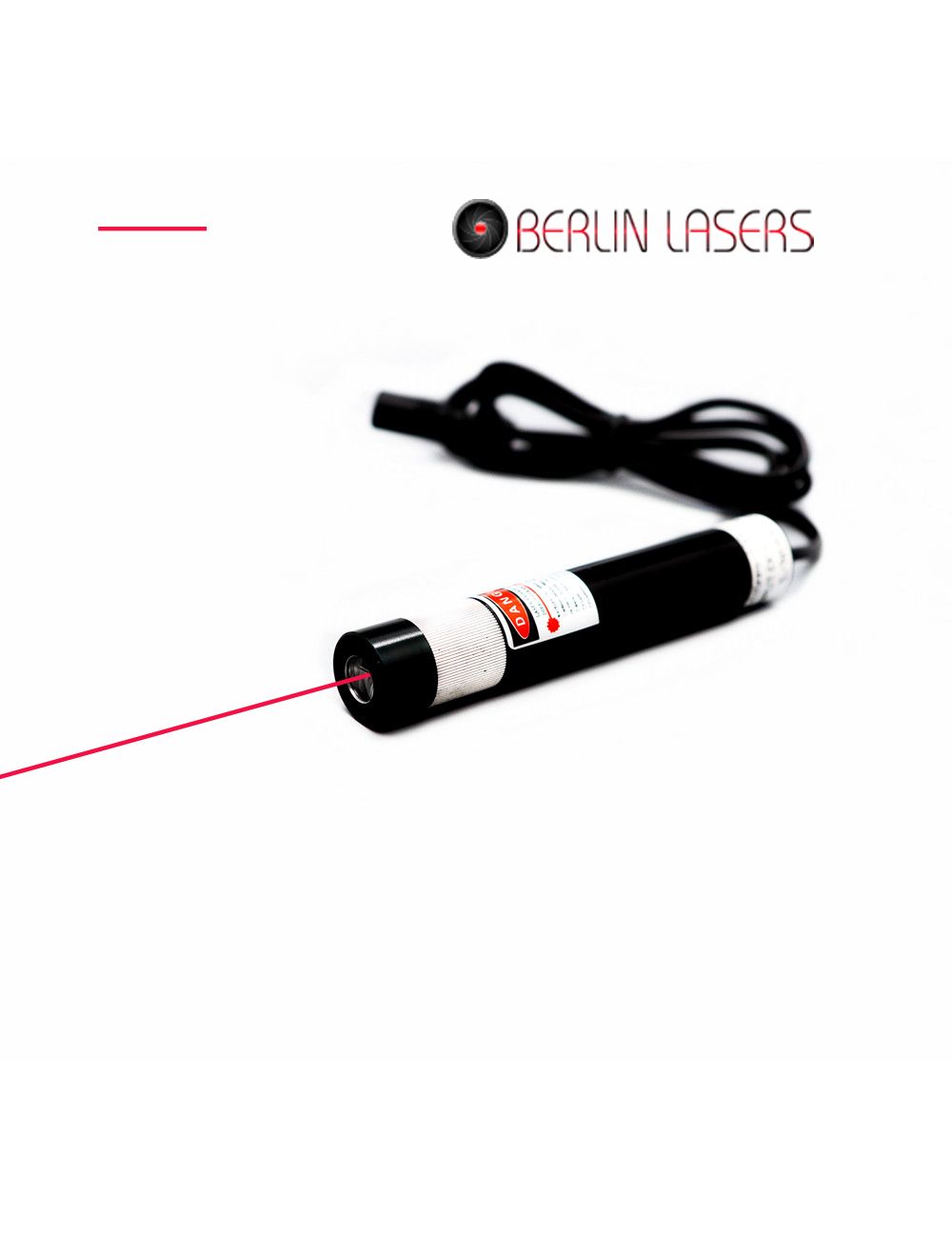

670nm 5mW to 100mW Red Laser Line Generators
670nm red laser line generators require to make long lasting and high stability line alignment, thus it makes advanced use of import 670nm red laser diode, qualified optic lens and APC, ACC driving circuit board. The ultra compact anodized aluminum alloy housing tube has just assured the most convenient installation, quick response and good direction red reference line projection for industrial and high tech precise line alignment fields.
- Buy 3 for $97.99 each and save 2%
- Buy 5 for $95.99 each and save 4%
- Buy 10 for $93.99 each and save 6%
Industrial stabilized 670nm red laser line generator applies qualified glass coated lens or Powell lens within 10 to 110 degree, generating high quality Gaussian beam or Non Gaussian distribution red laser light, and high fineness and brightness red reference line of beam aperture. After easy use of electric power source and mounting onto industrial device, 670nm red laser module makes no barrier, no decay light and no mistake line alignment constantly.
Key features:
Selectable output power of 5mW 10mW 20mW 30mW 50mW 80mW 100mW 670nm red laser line generator with 5V, 9V 1000mA AC/DC adapter assures constant red laser beam and red line projection, no effect of overheating and over current impact.
Ultra compact 16mm or 26mm diameter metal housing tube with metal heat sink cooling system and APC, ACC driving circuit board assures superior nice thermal emitting, wide operating temperature, and high stability red line alignment.
APC, ACC driving circuit board supports 670nm red laser module with constant output power and electric current supply, no tube burning out or damage within 8 to 10 hours constant use.
CW or pulsing laser selectable
Technical data:
| Item | Red Line Laser Modules |
| Wavelength (nm) | 670nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2mm; At 2m distance: <2mm |
| Beam divergence (mrad) | 5mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing last: 1 ea 670nm red laser line generator and 1 ea AC/DC adapter
Applications: laser collimation, laser medical therapy device, industrial line alignment, sand milling, lumber machine and textile garment processing, lab experiment etc
Note: For operation of high power 670nm red laser module up to 50mW to 100mW, it projects powerful red laser radiation and thermal energy. In order to avoid thermal energy hurt to eyes and retina, please take laser safety measure and wear correct laser safety goggles for constant laser line alignment.
