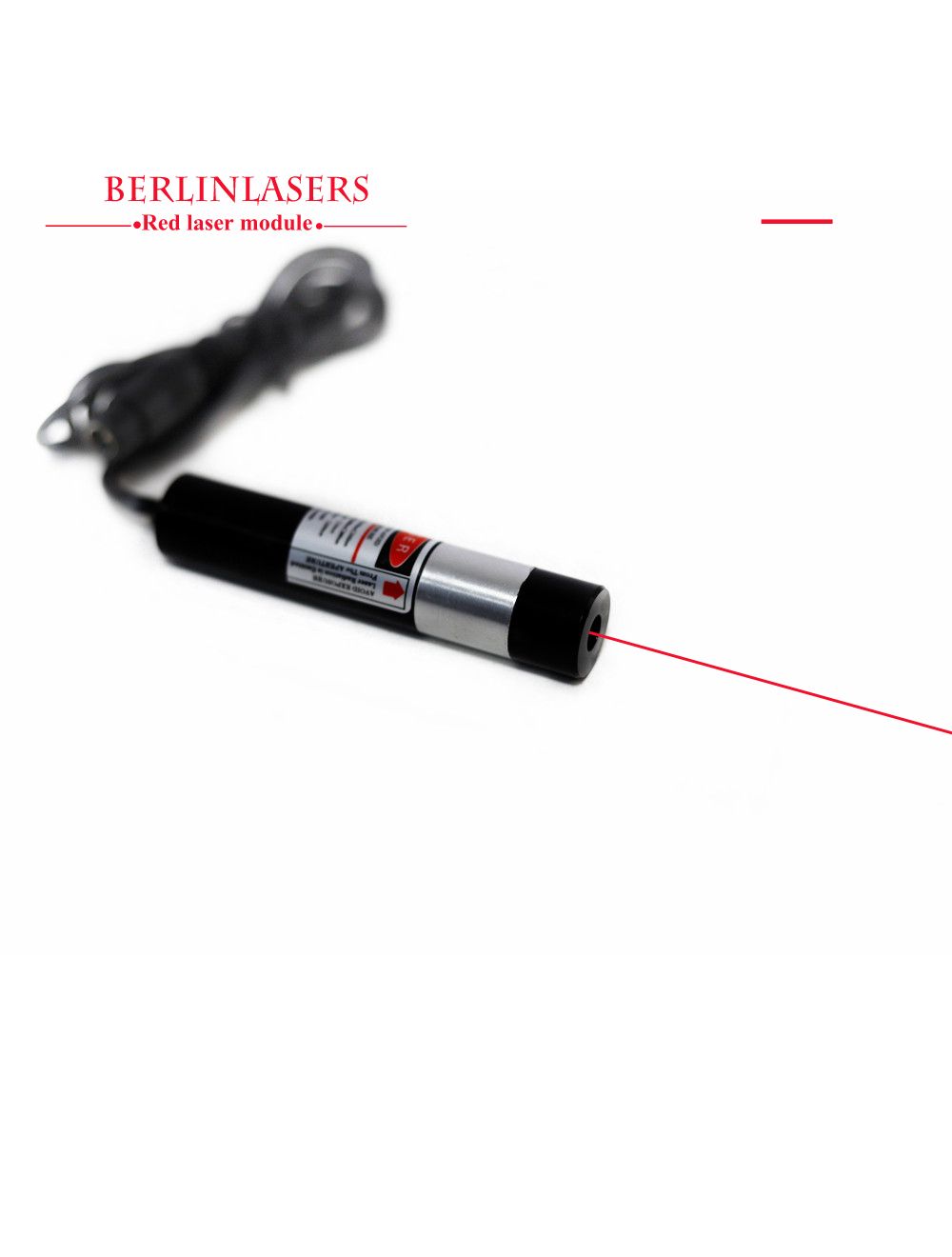

660nm Red Line Laser Alignment
Integrated with qualified 660nm red laser diode, qualified optic lens and thermal emitting system into high duration metal housing tube, it is just great technical innovation to develop a 660nm red line laser alignment. It makes sure of high quality red laser light source emission and high linear quality red reference line projection. This red laser module provides high precision and low cost line measuring solution for prominent colleges, labs and institutes.
- Buy 3 for $74.99 each and save 3%
- Buy 5 for $72.99 each and save 5%
- Buy 10 for $70.99 each and save 8%
Good direction and quick response line alignment for all precise device manufacturing works.
Employing import 660nm red laser diode and qualified glass coated lens or separate crystal lens, 660nm red line laser alignment just performs with strong industrial stabilization, and highly fine and clear red reference line indication in distance. The perfect use of cooling system and APC, ACC driving circuit board inside compact size tube, it assures high stability and qualified red laser light source emission, and extremely clear red line projection for modern time industrial and high tech line measuring works.
AC/DC adapter enables constant red laser light source emission.
Within wide range output power of 5mW to 100mW, direct diode emission 660nm red line laser alignment should only be equipping with 5V, 9V 1000mA DC power supply, obtaining continuous red laser beam and red line projection. The genuine red line alignment maintains good beam stability and noncontact line indication.
Qualified optic lens obtains different line lengths and fineness in use.
660nm red line laser module gets selected glass coated lens or separate crystal lens within 10 degree to 110 degree. It keeps work with high transmittance red laser light emission and high linear quality red line alignment. No decay light and no blur beam in constant line measuring works.
Adjustable focus lens assures the finest line measurement.
Powerful red laser beam is focusing at beam aperture. Very easy screw of adjustable focus optic lens enables immediate re laser light concentration, and the finest red line alignment.
Technical parameters:
| Item | Red Line Laser Alignment |
| Wavelength (nm) | 660nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle (degree) | 10°- 110° |
| Beam diameter at aperture (mm) | <2.0mm; at 2m diameter: <2.0mm |
| Beam divergence (mrad) | 5 mrad |
| Beam mode | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | 5mW-20mW:DC＝5V; 30mW-100mW:DC＝9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | 5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm |
| Expected lifetime (hours) | ≥8000 hours |
| Warranty | 6 months |
Applications: sand milling, lumber machine, laser cutting machine, textile garment processing, scientific research work etc
Note:
High power 660nm red line laser alignment up to 50mW to 100mW projects powerful red laser radiation and thermal energy. Do avoid any eye exposure to laser beam aperture and wear correct 660nm wavelength preventing laser safety goggles until achieving safe and free use constantly.
Power Supply:
Input: AC 100-240V, 1.0A , 50/60Hz
Output: DC 5V, 9V, 1000mA
Dimension: 70mm×46mm×27mm
Length of AC input line: 116cm
Length of DC output line: 126cm
Packing List: 1 660nm red line laser alignment, 1 AC/DC adapter
Attention: For high powered or OEM alignment lasers, please contact us free at support@berlinlasers.com.
