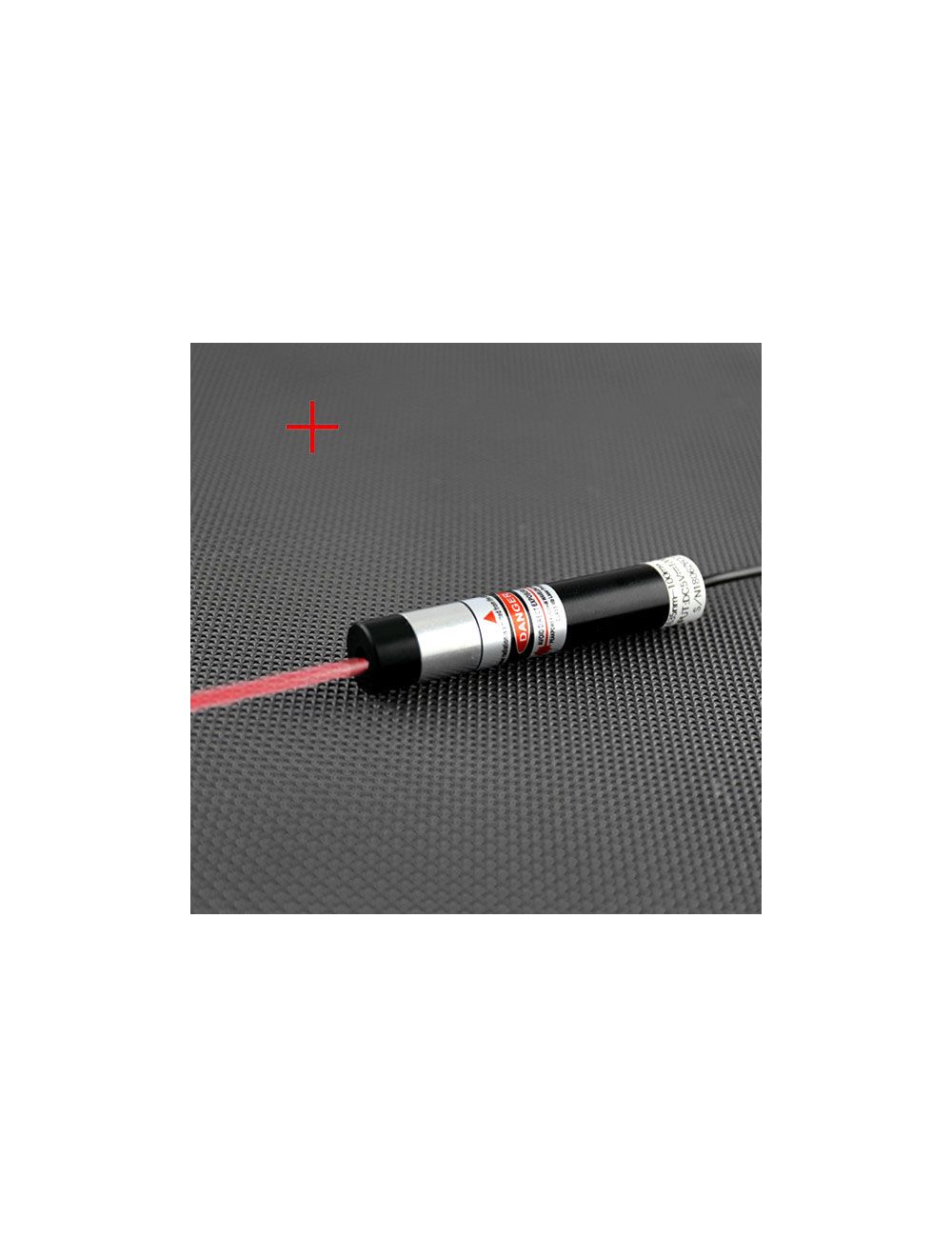

660nm 5mW-100mW Red Cross Line Laser Module
Industrial stabilized 660nm red cross line laser module gets advanced equipment with import 660nm red laser diode and qualified glass coated lens with different fan angles, it generates the most complex two perpendicular lines with accurate 90 degrees. It gets featured advantages of compact structure, quick response and convenient operation, fulfilling highly reliable and visible red laser light source providing for prominent institutes, universities and labs etc.
- Buy 3 for $107.98 each and save 2%
- Buy 5 for $105.98 each and save 4%
- Buy 10 for $102.98 each and save 6%
The most reliable red cross line alignment source with low cost and long lifetime.
Employing good thermal emitting from metal heat sink cooling system and APC, ACC driving circuit board inside highly durable aircraft used aluminum alloy housing tube, 660nm red cross line laser module assures superior nice thermal emitting, and the most reliable red cross line source emission within 8 to 10 hours. Proper installation and screw of adjustable focus optic lens assure the best quality red laser light source emission and high accuracy two perpendicular lines with accurate 90 degrees for all industrial and high tech precise cross line alignment fields.
Qualified glass coated lens assures high fineness red cross line source. Applying qualified glass coated lens with 10°, 15° and 110° fan angles and special used glass widow, 660nm red cross module projects high fineness and straight red cross line source, no affect by moisture or dust.
Wide output power of 5mW to 100mW achieves highly clear cross line alignment at various work distances. Configured with import 660nm red laser diode, metal heat sink cooling system and APC driving circuit board, 16mm or 26m diameter tube, red laser module assures highly clear cross line alignment and up to 85% beam stability in constant use.
AC/DC adapter assures constant red cross line alignment constantly. 5V, 9V 1000mA DC power supported 660nm red cross line laser module assures highly clear and stable red cross line alignment, no affect by increasing temperature and electric impact as well.
Technical parameters:
| Item | Red Cross Line Laser Module |
| Wavelength(nm) | 660nm |
| Output power(mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angel (degrees) | 10°, 15°, 110° |
| Beam diameter at aperture(mm) | 2m beam diameter: <2.2mm |
| Beam divergence(mrad) | 5 mrad |
| Beam mode | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | 5mW-20mW:DC＝5V; 30mW-100mW:DC＝9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | 5mW-20mW: D16mm×L71mm;30mW-100mW: D26mm×L150mm |
| Expected lifetime (hours) | ≥8,000 hours |
| Warranty | 6 months |
Packing List: 1 pc 660nm 5mW-100mW red cross line laser module, and 1 pc AC/DC Adapter
Applications: laser alignment fro embroidery machine, screen printing system, heat transfer machine, laser medical therapy device, laser car wheel alignment, and scientific research work etc
Note: The genuine use of high power 660nm red cross line laser module up to 50mW to 100mW emits the most powerful red laser light and thermal energy from beam aperture. In order to avoid thermal energy hurt to human eyes, please avoid any eye exposure to beam aperture and wear proper 660nm wavelength preventing laser safety goggles so as to achieve safe and free cross line alignment constantly.
