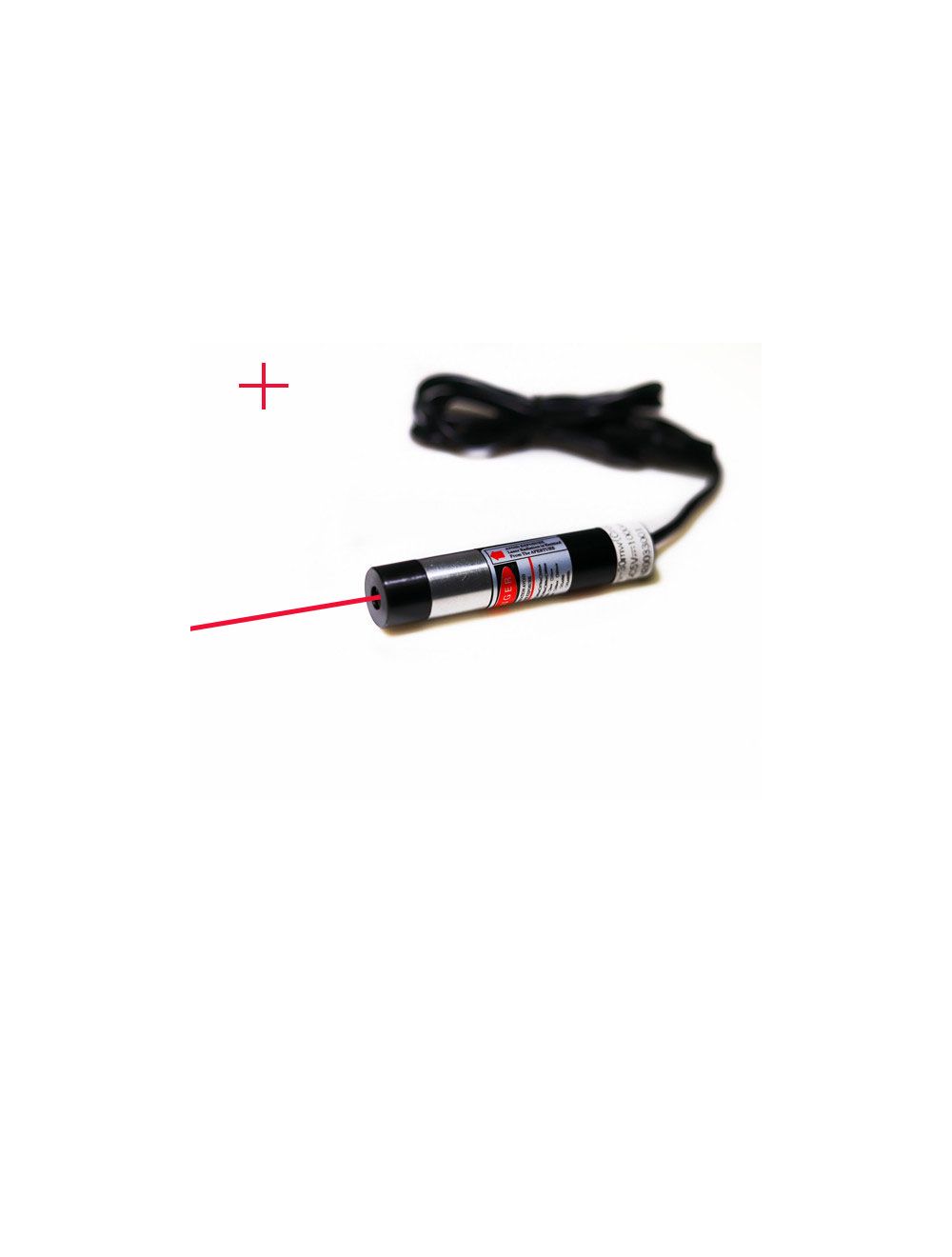

658nm 5mW to 100mW Red Cross Line Laser Modules
Formal brightness 658nm red cross line laser modules keep work with highly intense red laser beam emission via 658nm red laser diodes. Equipping with qualified glass coated lens, after special use of glass window in front of beam aperture and up to 24 hours aging preventing and beam stability test, this direct diode emission red laser gets high beam stability, high accuracy and low price red two perpendicular lines generation in constant use.
- Buy 3 for $97.99 each and save 2%
- Buy 5 for $95.99 each and save 4%
- Buy 10 for $93.99 each and save 6%
Ultra compact designed 658nm red cross line laser modules get featured advantages of good direction, wide operating temperature, stable performance, and good laser light cycling use. Under operation with external electric power source and good use of thermal emitting, direct diode emission 658nm red laser projects continuous red laser beam, and highly stable red cross line generation for precise measurement for both industrial and high tech fields.
Key features:
Import 658nm 5mW to 100mW red laser diode with metal heat sink cooling system and APC, ACC driving circuit board achieves superior nice thermal emitting, constant red cross line projection and long lifetime.
5V, 9V 1000mA AC/DC adapter enables constant red laser beam and red cross line generation in continuous use within 8 to 10 hours, no effect of overheating or over current impact.
Qualified glass coated lens with 10, 15, 110 degree fan angles generates different dimension red cross line, applying for multiple application fields.
CW or pulsing laser selectable
Technical data:
| Item | Red Cross Line Laser Modules |
| Wavelength(nm) | 658nm |
| Output power(mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angel (degrees) | 10°,15°,110° |
| Beam diameter at aperture(mm) | 2m beam diameter: <2.2mm |
| Beam divergence(mrad) | 5 mrad |
| Beam mode | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | ≥8,000 hours |
| Warranty | 6 months |
Packing list: 1 ea 658nm red cross line laser module and 1 ea AC/DC adapter
Applications: laser medical therapy device, laser alignment for screen printing system, heat transfer machine, laser car wheel alignment, and scientific research etc
Note: Powerful red laser radiation and thermal energy are projecting via high power 658nm red laser up to 50mW to 100mW. It cause potential thermal energy hurt to human eyes or retina. Users should wear correct laser safety goggles and avoid eye exposure to beam aperture to get easy and free measurement.
