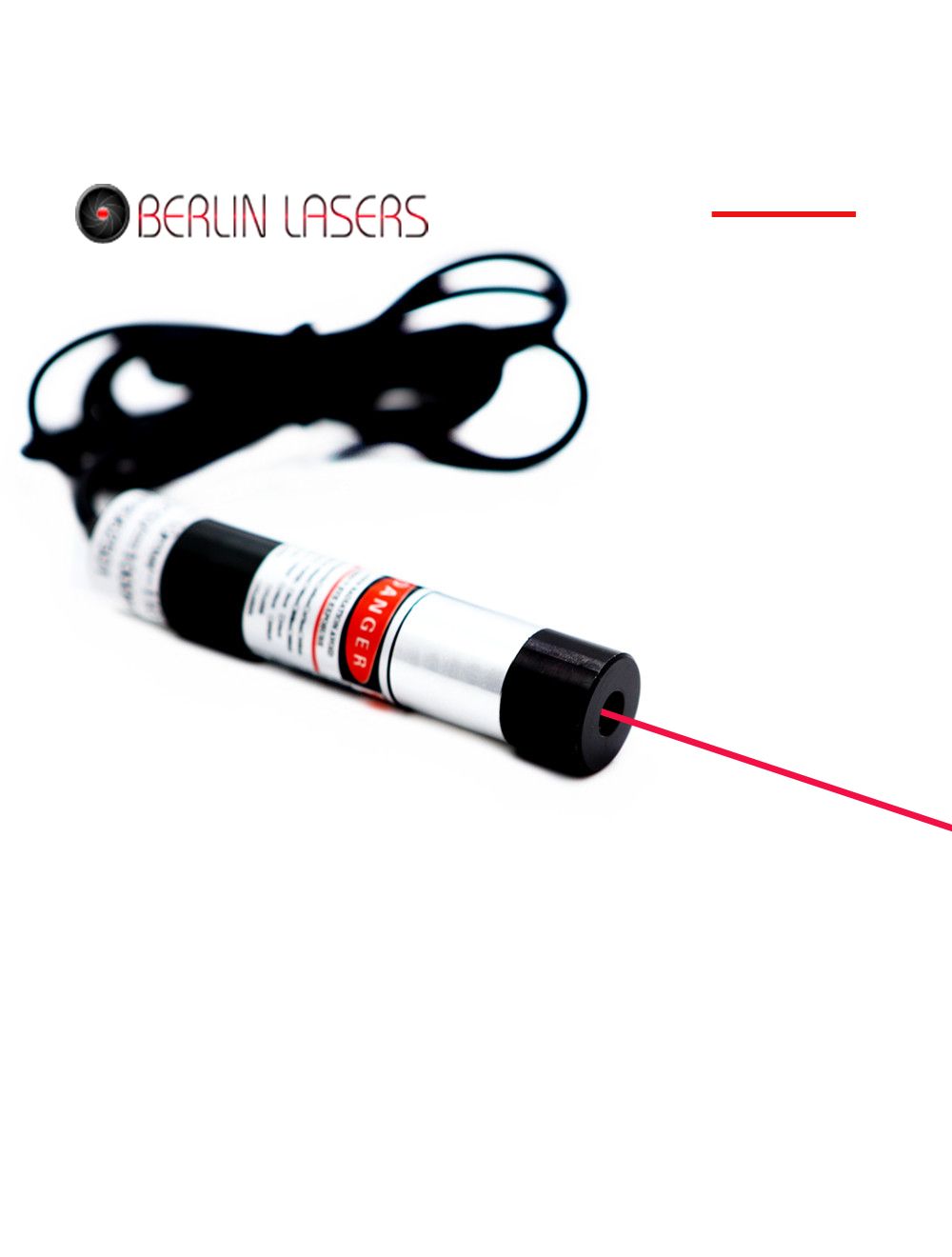

648nm 5mW 10mW 20mW 30mW 50mW 80mW 100mW Red Laser Line Generators
Employing by import 648nm red laser diode, wide fan angles optic lens, and APC, ACC driving circuit board, 648nm 5mW to 100mW red laser line generator gets strong industrial stabilization and highly reliable red laser light source emission. This ultra compact designed red laser enables convenient installation and easy connects with AC/DC adapter, assuring no labor force input and no mistake red line alignment for labs, institutes and labs.
- Buy 3 for $77.99 each and save 2%
- Buy 5 for $75.99 each and save 5%
- Buy 10 for $73.99 each and save 7%
Industrial Aligned 648nm 5mW to 100mW red laser line generators applies good thermal emitting, qualified glass coated lens or Powell lens within 10 to 110°fan angles, assures highly stable and high linear quality red line emission with various line lengths. Passing through up to 24 hours aging preventing test and special use of a glass window, 648nm red laser module gets perfect protection under moisture or dust, and assures low cost and high accuracy line measurement for industrial and high techs.
Key features:
Wide range output power of 5mW to 100mW 648nm red laser modules with inner metal heat sink and APC, ACC driving circuit board assure nice thermal emitting and highly reliable red line alignment in constant use.
AC/DC adapter with 5V, 9V voltage assures constant red laser beam emission and red line indication, without overheating and over current impact.
16mm and 26mm diameter anodized aluminum alloy housing tubes allows convenient installation, freely installed distance of 3 meters and no barrier red line alignment.
Easy screw adjustable focus optic lens achieves high quality red laser light emission, increasing accuracy and fineness red line indication in distance.
CW or pulsing laser selectable
Technical data:
| Item | Red Laser Line Generators |
| Wavelength (nm) | 648nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2mm; At 2m distance: <2mm |
| Beam divergence (mrad) | 5mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 648nm red laser line generator and 1 ea AC/DC adapter
Applications: sand milling, lumber machine, stone, wood, metal and garment processing, high tech
Note: The genuine use of high power 648nm red lasers up to 50mW to 100mW generates powerful laser radiation and thermal energy. In order to avoid potential hurt to human eyes and retina, please avoid eye exposure to beam aperture. Do remember to wear laser safety goggles.
