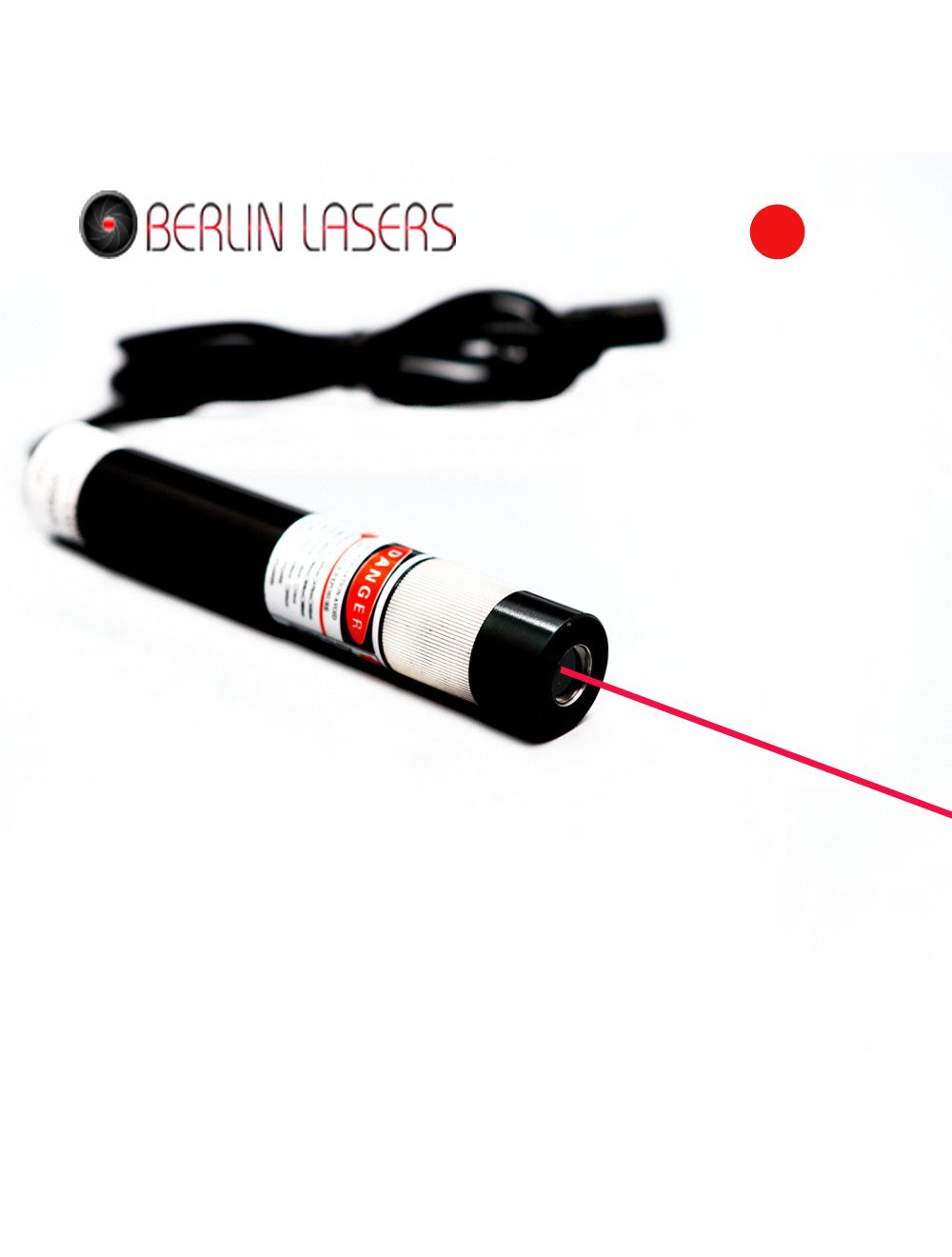

648nm 5mW to 100mW Red Laser Diode Modules
Direct diode emission made device of 648nm red laser diode module makes the best use of qualified 648nm red laser diode, metal heat sink cooling system and qualified glass coated lens. It provides users high stability and high brightness red laser light source emission of beam aperture. Connected with AC/DC adapter with overheating and over current protecting functions, and proper adjustment of beam focus, 648nm red laser assures the best red dot aligning solutions for institutes, labs and colleges, etc.
- Buy 3 for $67.99 each and save 3%
- Buy 5 for $65.99 each and save 6%
- Buy 10 for $63.99 each and save 9%
High brightness 648nm red laser diode module provides users high stability and low product cost dot aligning solutions for both industrial and high tech fields.
Durable structure made red dot laser device applies qualified 648nm red laser diode within 5mW to 100mW, assuring strong environmental and wide operating temperature stabilization. After correct use of output power and easy adjustment of beam focus, it gets increasing accuracy red dot alignment at various work distances.
Key features:
Good thermal emitting made 648nm red laser cooperates metal heat sink cooling system and APC, ACC driving circuit board with durable anodized aluminum alloy housing tube. It assures superior nice thermal emitting, and up to 85% beam stability within 8 to 10 hours use.
AC/DC adapter with 5V 9V voltage supports 635nm red laser module within 5mW to 100mW, providing users highly clear and accurate red dot alignment within wide range work distances and lighting occasions.
16mm and 26mm diameter ultra compact structure design assures sufficient thermal emitting, and highly stable red dot alignment for long lasting and long time use.
APC, ACC driving circuit board assures constant output power and electric current supply, assuring long lifetime, reduced possibility of tube burning out or damage, and good beam stability.
Technical Data:
| Item | Red Laser Diode Module |
| Wavelength (nm) | 648nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW,100mW |
| Laser Class | IIIa, IIIb |
| Beam thickness at aperture (mm) | <4.2mm*2.5mm |
| Beam divergence (mrad) | <5mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| TTL Modulation | NO |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 648nm red laser diode module and 1 ea AC/DC adapter
Applications: industrial precise dot alignment, laser marking machine, laser engraving machine, drilling system, bioengineering, material analysis, scientific research etc
Note: The operation of high power 648nm red laser up to 50mW to 100mW generates seriously powerful red laser radiation and reflection of beam aperture, and brings serious thermal energy hurt to human eyes and retina. Do remember to wear correct laser safety goggles and glasses, and avoid eye exposure so as to get easy and safe dot alignment constantly.
