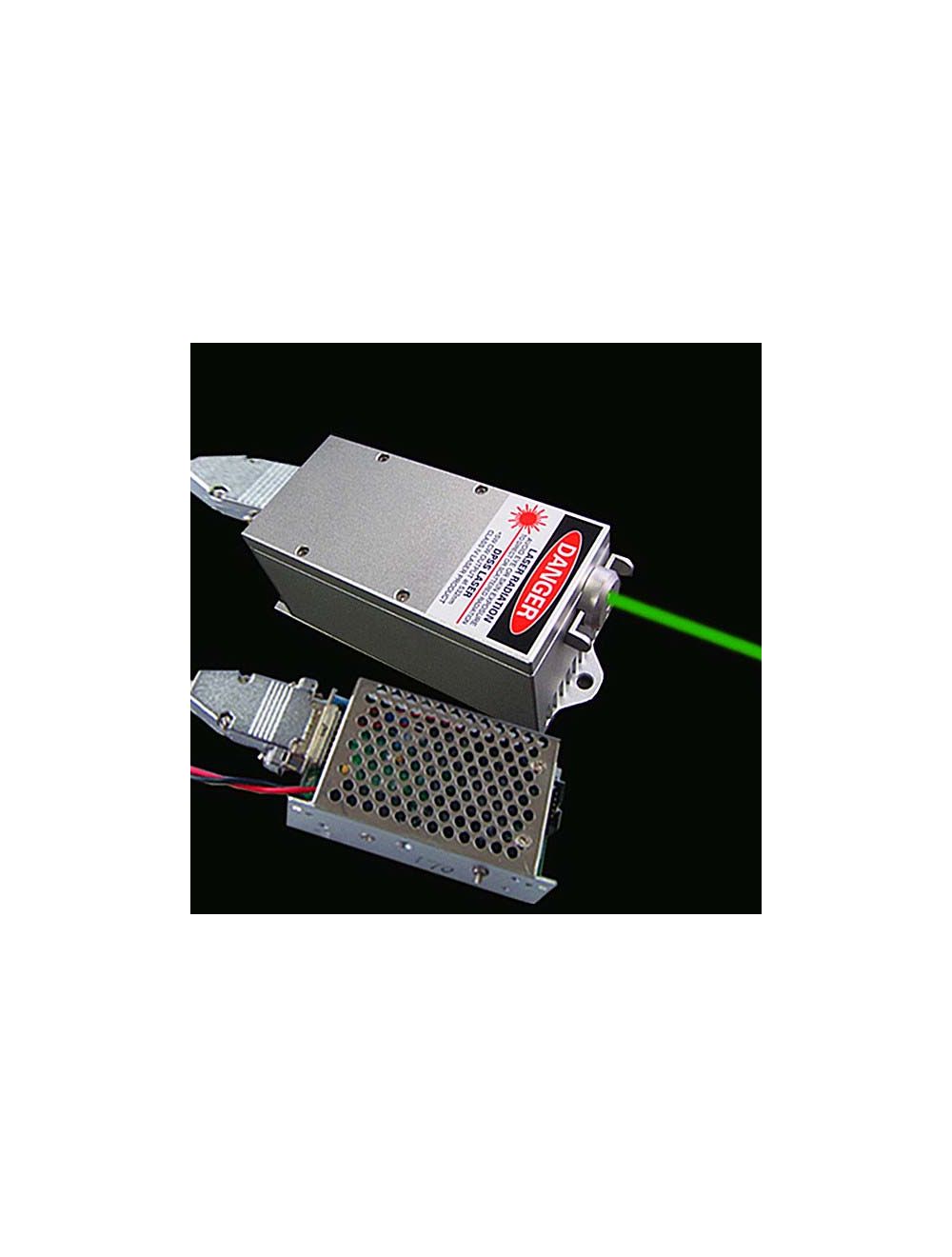

500mW-3W 532nm Green DPSS Laser System

532nm green (Diode-Pumped Solid-State) DPSS laser system is available with wide output power range from 500mW to 3W, providing the most qualified 532nm green laser light source with low cost, ultra compact design, and high stability. 532nm green DPSS lasers provide ideal green laser source for high tech applied fields for general collimation, illumination, florescence excitation etc in those of lab experiments, university, and research institute.

was $1,359.00 Special Price $1,299.00
Availability: In stock
SKU
500mw-3W-532DPSS

High stability series 532nm green DPSS laser system are ideal 532nm green laser source applied for high tech working fields. Combined of TEC and air cooling, this ultra compact green DPSS laser makes sure of the most efficient thermal emitting in all general illumination fields.

◆ FDA approval DPSS laser with high stability output power and long serving lifetime
Superior quality 532nm green DPSS laser selects FDA compliant production standard. It fulfills high qualify 532nm green laser source supply for laser medical treatment, scientific research, optical instrument, laser display, PIV, Raman Spectroscopy, Confocal microscopy, laser light show etc.

◆ TTL or analog modulation DPSS laser system fulfills various laser light needs.
Available with both TTL and analog modulation, this wide output power selectable 532nm green DPSS laser always makes sure of high stability and high duration laser beam emission. It gets wide recognize from top university, colleague, research center etc.

Key features:
TEC and air cooling, ensures high level of stable and reliability 532nm green laser light emission.
Ultra compact and lightweight design DPSS laser system, OEM laser acceptable
TTL and analog modulation, workable for all lab experiment, scientific research
Up 10,000 hours continuous serving lifetime, no green light decay, blur
FDA compliant Class IIIb, Class IV laser

Technical Data:

Item Green DPSS Laser System
Wavelength (nm) 532±1
Power(mW) 500mW - 3W
Power stability(rms, over 4 hours) <2%
Polarization direction horizontal
Polarization ratio >100:1
Beam quality M2<1.5
Beam diameter at the aperture (mm) ~ 2mm
Beam height from base plate (mm) 50.3
Beam divergence full angle (mrad) 1.0 mrad
Operating temperature (℃) 10~35°C
StorageTemperature(℃) -20~+80°C
Warm-up Time(minutes) 15 minutes
Cooling style TEC and Air Cooling
TTL /Analog modulation TTL modulation 10kHz; Analog modulation 10kHz 0-5V signal
Laser Head size 320mm×200mm×120mm
Laser Head weight 6.8kg
Power supply size 480×430×133mm
Power supply weight 13Kg
Operating voltage 220VAC or 110VAC / 50Hz
Expected Lifetime(hours) 10000 hours
Warranty period 1 year
