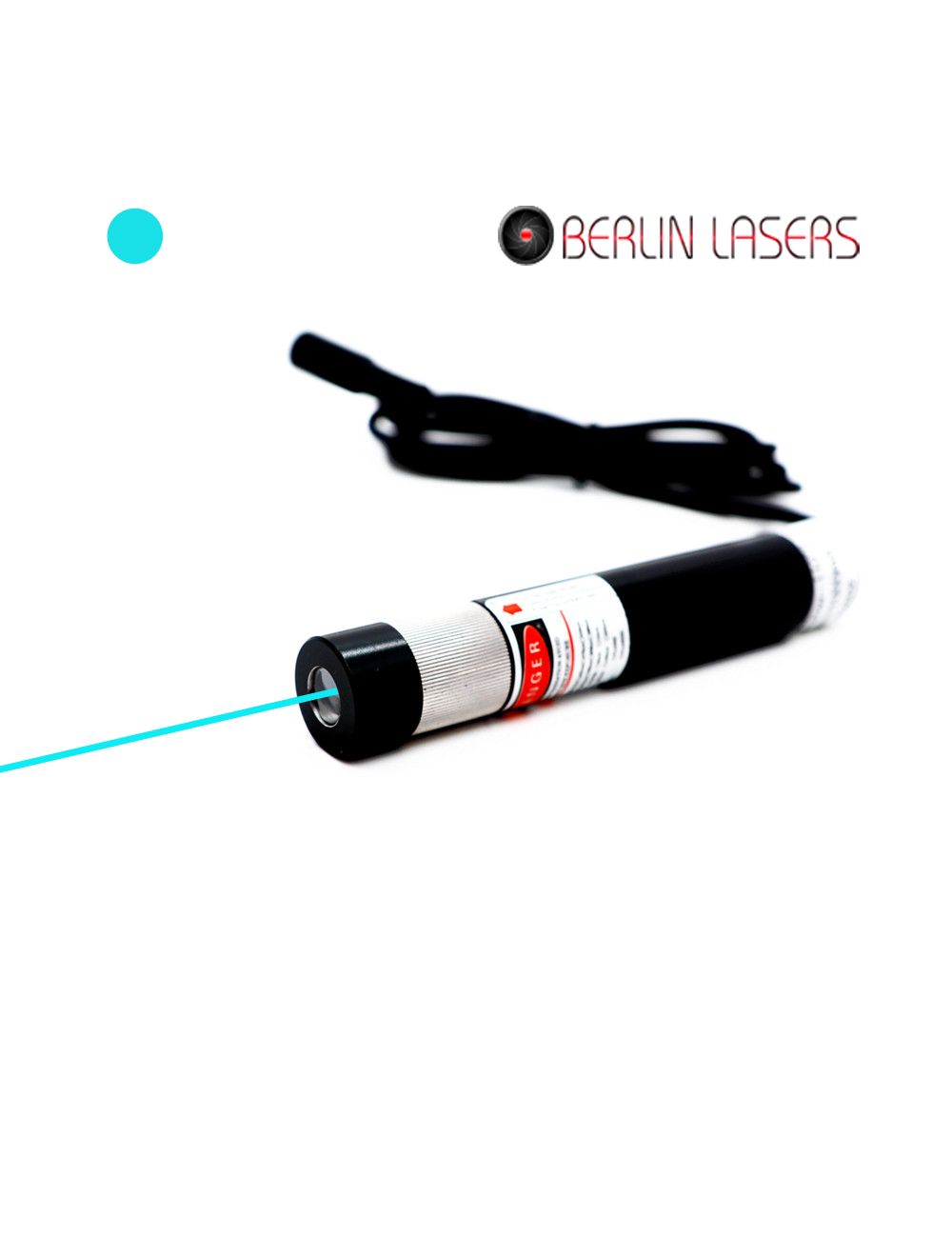

488nm 5mW-80mW Blue Laser Diode Modules
488nm blue laser diode module projects high brightness sky blue laser light of beam aperture, and gets peak wavelength of 488nm. It provides users continuous wave mode of operation and high stability blue laser beam emission. Supported by constant power source supply, ultra compact structure made 488nm blue laser within 30mW to 100mW fulfills a large variety of applications, including laser medical imaging, biomedical and high tech fields, etc.
- Buy 3 for $166.99 each and save 2%
- Buy 5 for $163.99 each and save 4%
- Buy 10 for $160.99 each and save 5%
High level of wavelength stability and high brightness sky blue laser light emission for various precise dot projecting work fields
Employed by an import 488nm blue laser diode, qualified glass coated lens, 488nm blue laser diode module always provides users increasing stability blue laser light emission, and highly clear blue reference dot projection. It emits high optical output power within 5mW to 100mW, and provides users the most reliable blue laser light source and gets wide range operating temperature as well. It gets featured advantages of ultra compact structure, good beam quality, low production cost and long lifetime.
Key features:
Direct diode emission made 488nm blue laser diode module with inner metal heat sink cooling ensures increasing laser beam stability and no dazzling blue light emission in continuous use.
AC/DC adapter support wide output power of 5mW to 100mW, it assures continuous blue laser light emission. Extending electric wires within 3 meters ensures convenient installation, and highly stable blue dot projection under increasing temperature.
Adjustable focus optic lens ensures immediate and high stability blue laser light concentration, and converts into increasing accuracy blue laser dot projection for both long time and long distance use.
APC, ACC driving circuit board made 488nm blue laser provides users constant output power and electric current supply, and reduced possibility of tube burning out or damage. Laser beam stability keeps up to 85% within 8 to 10 hours.
Technical parameters:
| Item | Blue Laser Diode Module |
| Wavelength (nm) | 488nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <3mm |
| Beam divergence (mrad) | 1.5mrad |
| Beam mode (before optics) | near TEM00 |
| Focus adjustable? | Yes |
| TTL Modulation | NO |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 488nm blue laser diode module and 1 ea AC/DC adapter
Note: Any direct eye exposure to powerful blue laser light up to 50mW to 100mW brings users thermal energy hurt to eyes. Do remember to wear correct laser safety goggles so as to assure free and safe dot alignment constantly.
