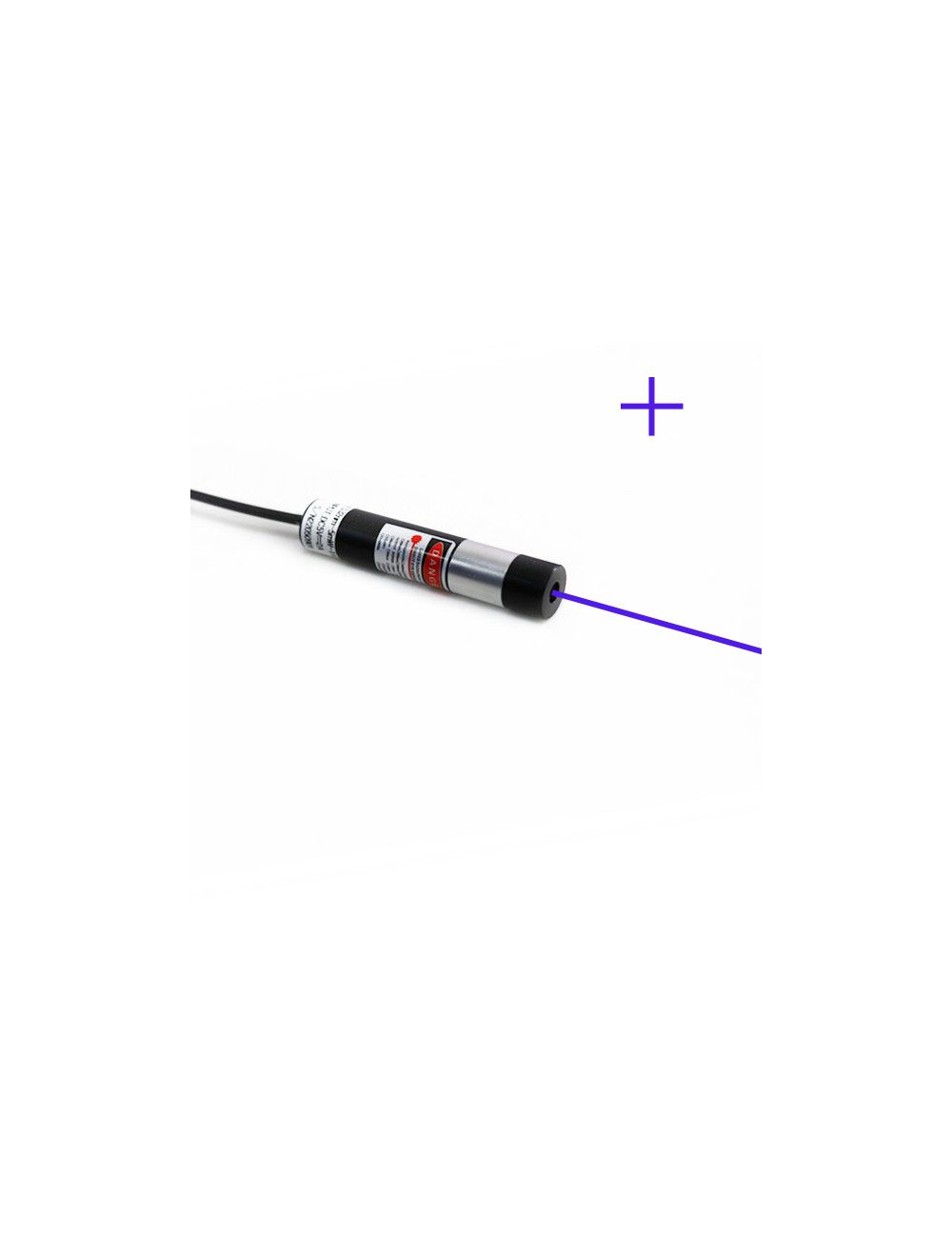

462nm 5mW to 100mW Blue Cross Line Laser Modules
Employed by import 462nm blue laser diode, qualified glass coated lens and electric driving circuit board, direct diode emission 462nm blue cross line laser module generates high purity and high brightness blue laser light of beam aperture. After easy use of external electric power source and mounting onto machine or device, it makes no barrier, quick response and good direction blue cross line alignment constantly.
- Buy 3 for $147.99 each and save 1%
- Buy 5 for $145.99 each and save 3%
- Buy 10 for $143.99 each and save 4%
High durable anodized aluminum alloy housing made 462nm blue cross line laser module gets featured advantages of wide operating temperature stabilization, low production cost, high precision. Special designed adjustable focus optic lens enables immediate blue laser light concentration, increasing accuracy and fineness blue cross line measurement for all industrial and high tech fields.
Key features:
462nm 5mW to 100mW blue laser modules with metal heat sink and APC, ACC driving circuit board assure good thermal emitting, constant blue cross line projection, long operating lifetime.
10, 15, 110 degree fan angle glass coated lens with glass window assures high linear quality and highly stable blue vertical and horizontal line emission, no effect of moisture or dust.
5V, 9V 1000mA AC/DC adapter supports 462nm blue cross laser with constant blue cross line projection, stable performance under overheating and over current impact.
CW or pulsing laser selectable
Technical data:
| Item | Blue Cross Line Laser Module |
| Wavelength (nm) | 462nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 15°, 110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <3mm |
| Beam divergence (mrad) | 1.5mrad |
| Beam mode (before optics) | near TEM00 |
| Focus adjustable? | Yes |
| TTL Modulation | No |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 462nm blue cross line laser module and 1 ea AC/DC adapter
Applications: laser show, laser projection, biomedical applications, metrology, and laser communication etc.
Note: For operation of high power 462nm blue laser up to 50mW to 100mW, it projects powerful blue laser radiation and thermal energy of beam aperture. Do remember to wear laser safety goggles and avoid eye exposure to beam aperture so as to make free and secured measurement constantly.
