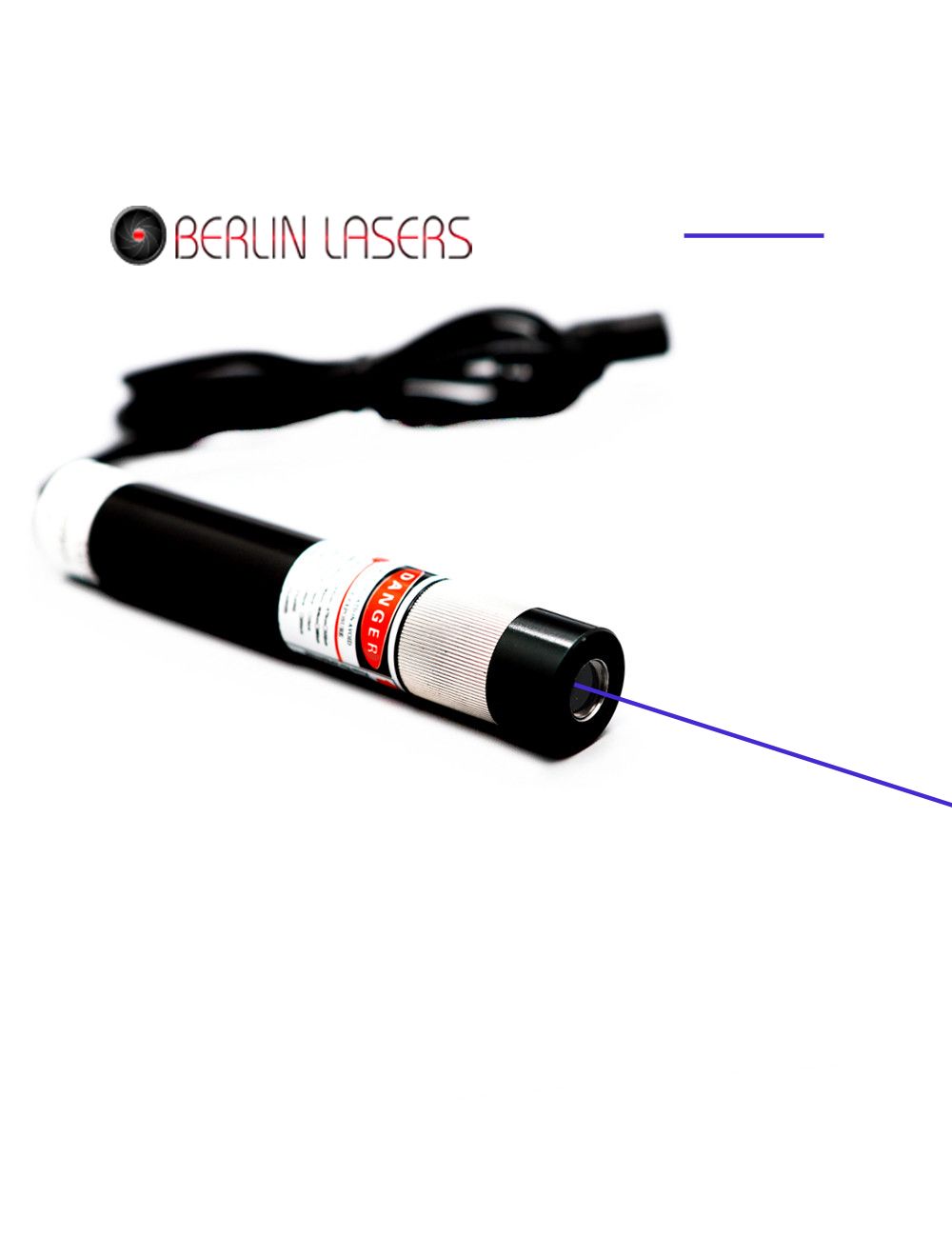

462nm 5mW/10mW/20mW/30mW/50mW/80mW/100mW Blue Line Laser Modules
Employed by import 462nm blue laser diodes, qualified optic lens and APC, ACC driving circuit board, 462nm blue line laser module projects ultra bright blue laser light source, and high fineness and straightness blue line in use. After easy mounting and adjusting to correct position, industrial stabilized blue laser provides users convenient and quick response blue line alignment for industrial and high tech effectively.
- Buy 3 for $137.99 each and save 1%
- Buy 5 for $135.99 each and save 3%
- Buy 10 for $133.99 each and save 4%
Direct diode emission 462nm blue laser line generator gets featured advantages of ultra compact design, good beam stability, industrial stabilization and good direction. After connecting with AC/DC adapter and easy screw of adjustable focus optic lens, it gets constant blue laser light source emission, and increasing accuracy and fineness blue line measurement for multiple application fields.
Key features:
Wide output power of 5mW to 100mW 462nm blue laser diodes with metal heat sink cooling system inside high duration anodized aluminum alloy housing tube, blue laser module achieves good thermal emitting, and highly clear blue line indication at various work distances.
Wide fan angles of 10° to 110°made glass coated lens and Powell lens ensures qualified blue laser light emission, and high fineness blue line alignment with selected line lengths and finenesses.
AC/DC adapter supports constant blue laser beam and blue line generation, no affect by overheating and over current.
APC, ACC driving circuit board assures the most reliable blue line alignment, and reduced tube burning out or damage.
CW and pulsing laser selectable
Technical data:
| Item | Blue Line Laser Modules |
| Wavelength (nm) | 462nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2.5mm; At 2m distance: <2.5mm |
| Beam divergence (mrad) | 3.0mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L91mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 462nm blue line laser module and 1 ea AC/DC adapter
Applications: laser show, laser projections, industrial line alignment, biomedical and metrology, laser communication, lab experiment etc
Note: The genuine use of high power 462nm blue laser up to 50mW to 100mW emits highly clear blue line at long distance, and powerful blue laser radiation and reflection of beam aperture. Do avoid direct eye exposure to beam aperture and wear correct laser safety goggles so as to get secured and fine line alignment constantly.
