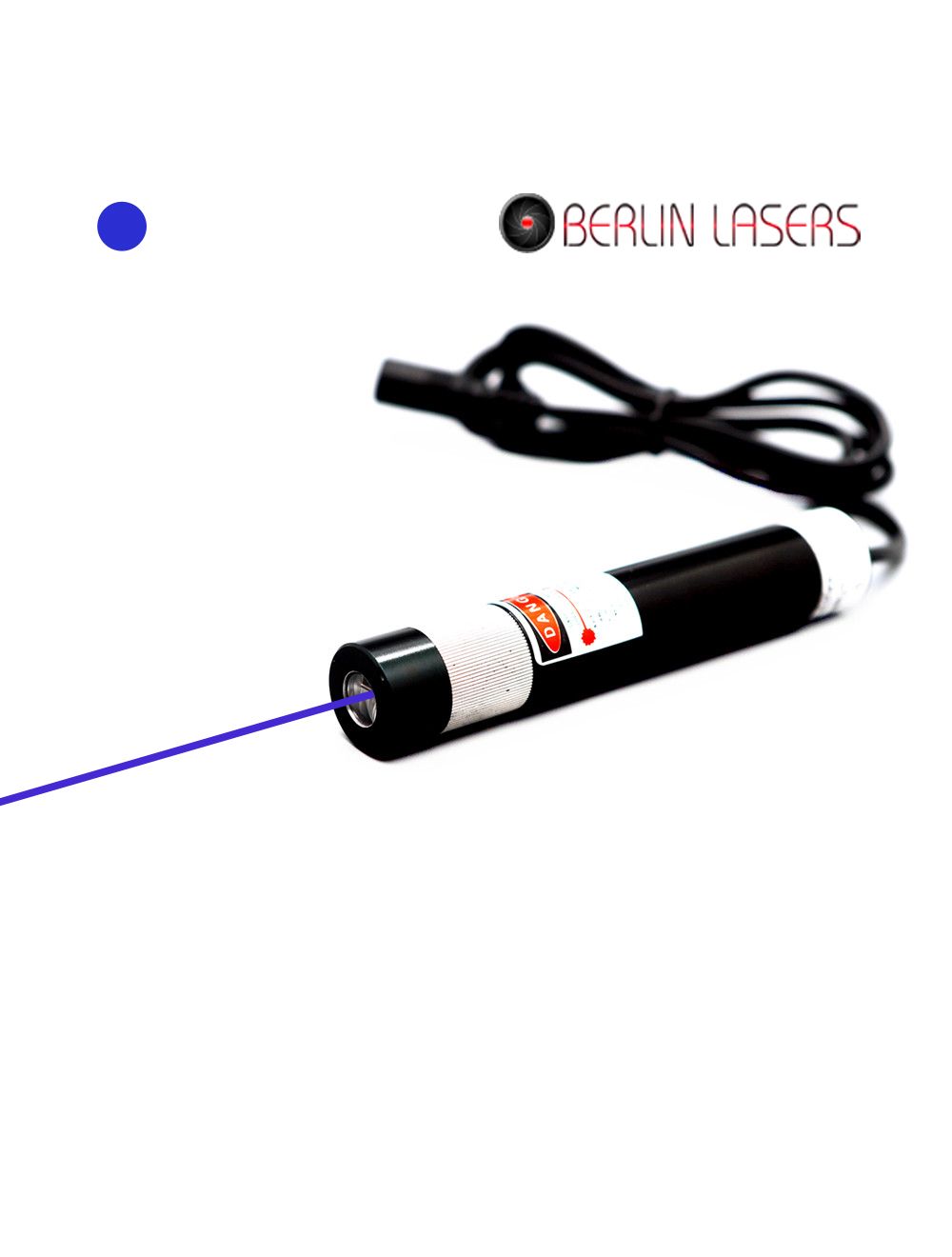

462nm 5mW 10mW 20mW 30mW 50mW 80mW 100mW Blue Laser Diode Modules
Employed by constant power source supply and integrated thermal emitting and qualified glass coated lens, 462nm blue laser diode modules within 5mW to 100mW provides users high brightness and continuous blue laser light source emission of beam aperture. Easy adjustable focus optic lens ensures the most concentrated blue laser beam and increasing accuracy blue dot alignment source for prominent colleges, instates and labs.
- Buy 3 for $127.99 each and save 2%
- Buy 5 for $124.99 each and save 4%
- Buy 10 for $121.99 each and save 6%
High stability and the most practical used dot aligned device of 462nm blue laser diode modules ensures high brightness blue laser emission and low product cost.
Integrating with qualified 462nm blue laser diode, glass coated lens, and APC, ACC driving circuit board inside high duration and ultra compact metal housing tube, 462nm blue laser diode module keeps work with high intensity blue laser light emission, and high stability blue dot projection for a number of industrial precise dot aligning fields. Correct use of output power and proper mounting providing users no mistake and no manual labor force aligning result precisely.
Key features:
Wide range output power of 5mW 10mW, 20mW, 30mW, 50mW, 80mW, and 100mW fulfills highly bright blue laser beam emission, and highly clear blue dot alignment with various work distances.
AC/DC adapter supports industrial 462nm blue dot laser with continuous output power emitting, and highly stable blue laser dot projection under increasing temperature and serious electric current impact.
Focus adjustable focus lens enables increasing accuracy and brightness blue dot alignment in distance.
16mm and 26mm diameter anodized aluminum alloy housing tube fulfills easy mounting and operation.
Applications: laser show, laser projections, stage light, biomedical applications and metrology, laser communication etc
Technical parameters:
| Item | Blue Laser Diode Modules |
| Wavelength (nm) | 462nm |
| Output power (mW) | 5mW, 10mW, 30mW, 50mW, 80mW, 100mW |
| Laser Class | IIIA, IIIB |
| Beam thickness at aperture (mm) | <2.5mm |
| Beam divergence (mrad) | 3mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| TTL Modulation | NO |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 462nm blue laser diode module and 1 ea AC/DC adapter
Note: Any operation of 462nm blue laser diode module up to 50mW produces powerful thermal energy, might causing hurt to human retina. Do avoid eye exposure to beam aperture and wear correct laser safety goggles and glasses to assure safe and free dot alignment.
