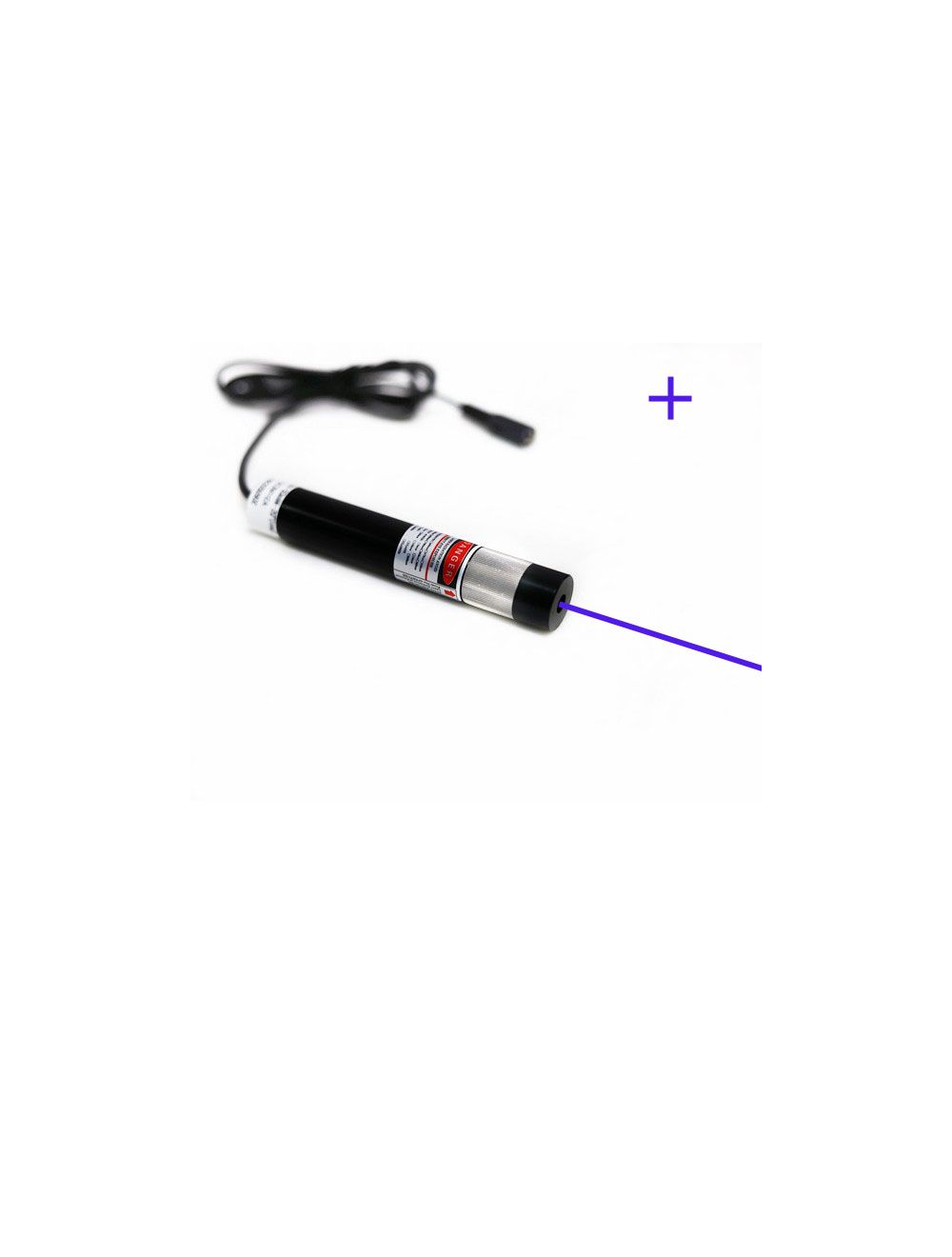

447nm 5mW to 100mW Blue Cross Line Laser Modules
Industrial stabilized 447nm blue cross line laser modules apply import 447nm blue laser diode, qualified optic lens, electric driving circuit board, project the best quality two perpendicular blue lines with accurate 90 degrees. Being made with ultra compact 16mm and 26mm diameter tube and external electric power source, it provides easy installation, quick response, and low production cost blue cross line measurement for labs, institutes and colleges.
- Buy 3 for $137.99 each and save 1%
- Buy 5 for $135.99 each and save 3%
- Buy 10 for $133.99 each and save 4%
Direct diode emission 447nm blue cross line laser module enables constant blue laser beam and blue cross line source generation of beam aperture. The durable anodized aluminum alloy housing tube assures wide operating temperature stabilization, easy and no labor force cross line measurement for all precise cross line alignment fields.
Key features:
Import 447nm blue laser diode within 5mW to 100mW with metal heat sink cooling system and APC, ACC driving circuit board assures increasing laser beam stability, long lasting cross line alignment and up to 8,000 hours operating lifetime.
5V, 9V 1000mA AC/DC adapter supports 447nm blue laser with constant blue laser beam and blue cross line projection within maximum operating time of 8 to 10 hours, no effect of overheating and over current impact.
Qualified glass coated lens with 10, 15 and 110 degree fan angles generates different dimension blue cross line lengths, and applies for multiple application fields.
Adjustable focus optic lens enables high concentration blue laser light emission, increasing accuracy and fineness blue cross line projection in distance.
Technical data:
| Item | Blue Cross Line Laser Module |
| Wavelength (nm) | 447nm |
| Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
| Available Fan Angle(degrees) | 10°, 15°, 110° |
| Laser Class | IIIa, IIIB |
| Beam thickness at aperture (mm) | <2.5mm |
| Beam divergence (mrad) | 3mrad |
| Beam mode (before optics) | TEM |
| Focus adjustable? | Yes |
| TTL Modulation | No |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 447nm blue cross line laser module and 1 ea AC/DC adapter
Applications: laser light decoration, laser show, industrial precise cross line alignment, holographic imaging, Raman, coherent detection
Note: Under operation of 445nm blue laser up to 50mW to 100mW, it projects powerful blue laser light and thermal energy. In order to avoid hurt to human eyes or retina, users should take laser safety measure and wear correct laser safety goggles so as to get free and secured measurement.
