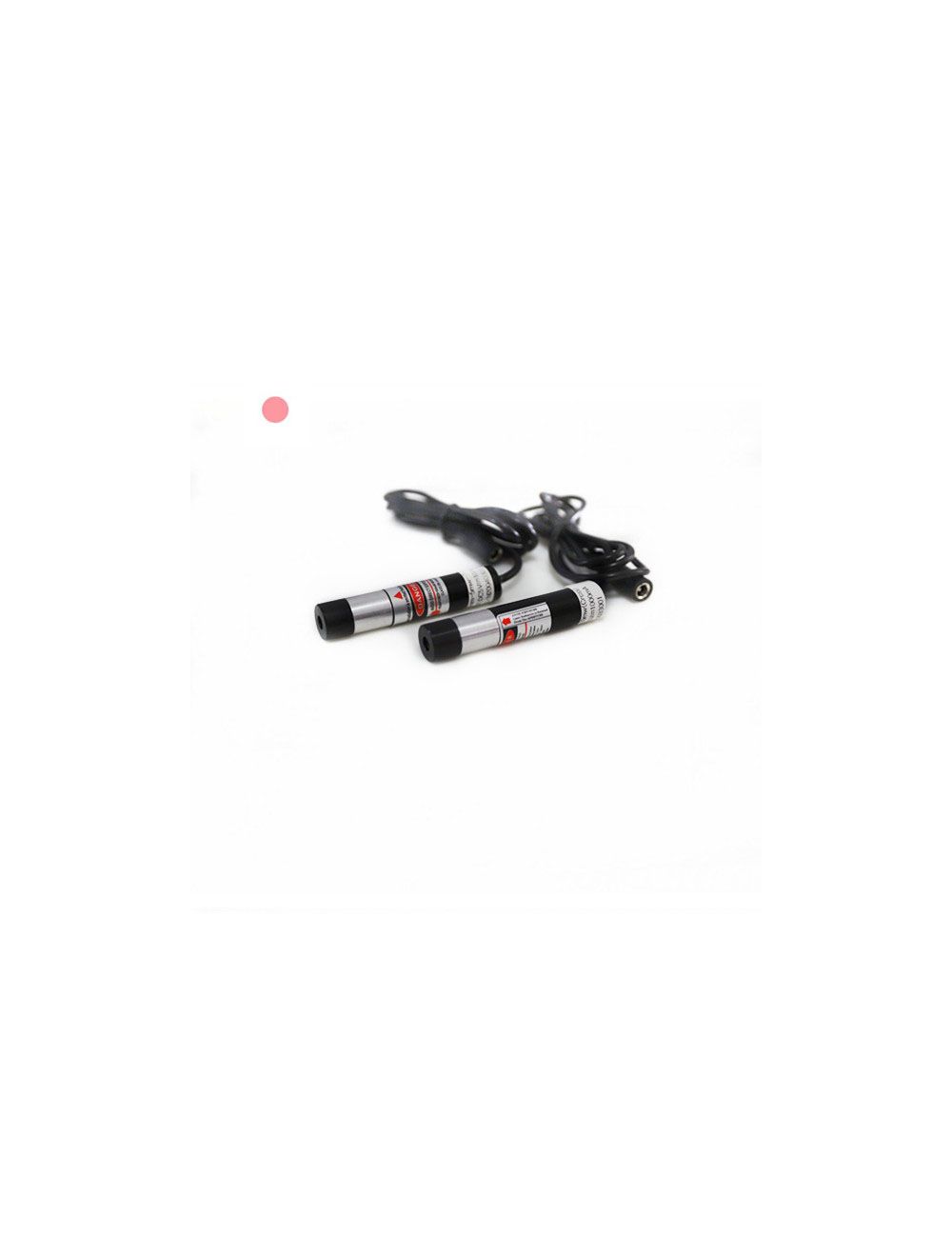

1470nm 100mW 200mW 300mW 500mW 1000mW Infrared Laser Diode Modules
Multimode IR laser diode made 1470nm infrared laser diode modules enables wide range output power of 100mW to 1000mW, integrating well with metal heat sink, glass coated lens and APC, ACC driving circuit board. Cooperating with night version device and external electric power source, it makes sure of high efficient infrared laser light conversion, and provides users the most reliable and precise infrared dot aligning source for prominent colleges, labs and institutes.
High power range 1470nm infrared laser diode modules make good use of import 1470nm MM laser diodes inside durable and ultra compact designed tubes, allowing convenient installation, easy operation, and low production cost and quick response infrared dot projection. After easy screw of adjustable focus optic lens and proper mounting onto night version device, 1470nm IR dot laser assures qualified infrared laser source emission and increasing accuracy infrared dot alignment in distance.
Key features:
Wide output power range of 100mW to 1000mW ensures powerful and intense infrared laser light emission, and generates highly clear infrared reference dot projection extending long distance of 100 to 1000 meters.
Import 1470nm MM laser diode assures 40% improvement of laser beam stability.
Up to 24 hours aging preventing and beam stability assures good laser light cycling use, and highly reliable infrared laser dot alignment by professionals or skills.
AC/DC adapter with 5V, 9V power source supports 1470nm infrared laser diode modules with constant infrared laser beam emission, stable infrared dot emission, and no affect by overheating and over current.
APC, ACC driving circuit ensures constant output power supply, no tube burning out or damage, and long operating lifetime.
CW and pulsing laser selectable
Technical data:
| Item | Infrared Laser Diode Module |
| Wavelength (nm) | 1470nm |
| Output power (mW) | 100mW 200mW 300mW 500mW 1000mW |
| Laser Class | IIIb, IV |
| Beam divergence (mrad) | 6mrad |
| Beam mode (before optics) | TE |
| Focus adjustable? | Yes |
| TTL Modulation | No |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA; |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm;D26mm×L150mm |
| Expected lifetime (hours) | 8000 hours |
| Warranty Period | 180 days |
Packing list: 1 ea 1470nm infrared laser diode module and 1 ea AC/DC adapter
Applications: infrared dot measurement, laser communication, spectrum analysis, scientific experiment etc
Note: The operation of high power 1470nm infrared laser diode modules generate invisible infrared laser beam, and bring users potential thermal energy hurt to human eyes. Please avoid any eye exposure to beam aperture. Do remember to wear correct laser safety goggles and glasses so as to achieve easy and safe infrared dot alignment constantly.
