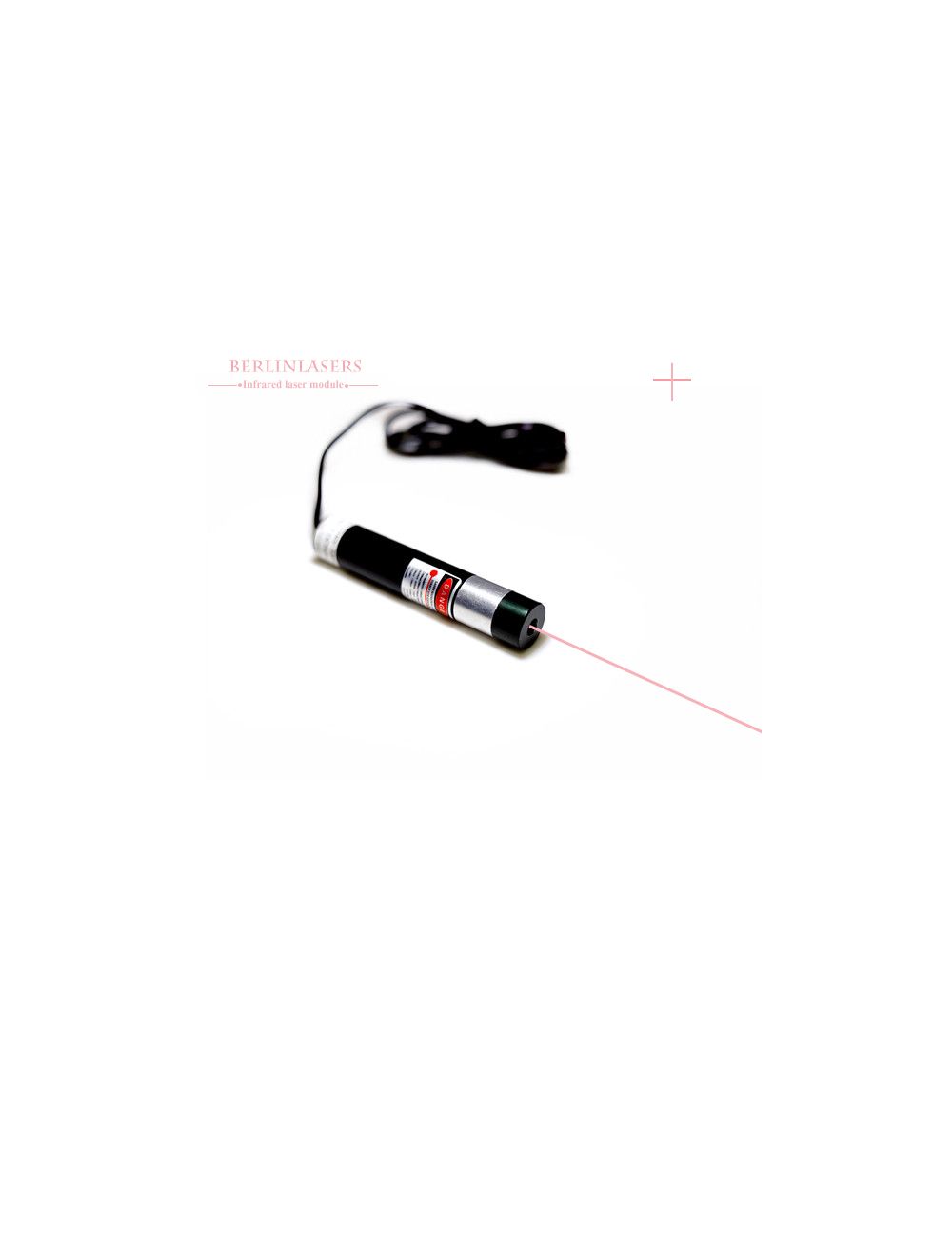

1064nm 50mW 100mW 200mW 300mW 400mW 500mW Infrared Cross Line Laser Modules
Long and continuous wavelength 1064nm infrared cross line laser modules apply import 1064nm infrared laser diode, qualified glass coated lens and APC, ACC driving circuit board, enable high optical intensity infrared laser light emission, and high precision infrared cross line measurement. Equipping with night version device and electric power source, 1310nm infrared lasers provide constant infrared cross line generation with high stability and low production cost.
- Buy 3 for $377.99 each and save 1%
- Buy 5 for $374.99 each and save 1%
- Buy 10 for $371.99 each and save 2%
Invisible beam 1064nm infrared cross line laser modules get featured advantages of ultra compact structure, quick response, good direction and good collimation. Cooperated with glass coated lens, glass window inside durable anodized aluminum alloy housing tube, direct diode emission 1064nm infrared lasers assure wide operating temperature, high linear quality and straightness infrared cross line generation constantly.
Key features:
Import 1064nm 50mW to 500mW infrared laser diodes with metal heat sink and APC, ACC driving circuit board ensure increasing laser beam stability, and highly clear and stable cross line alignment in long lasting use.
AC/DC adapter connected 1064nm infrared cross laser makes constant infrared laser beam and infrared cross line source emission, no effect by overheating and over current impact.
Wide fan angles 10, 15 and 110 degree glass coated lens generates different dimension and high linear quality infrared cross line sources, no light decay or blur in use.
Adjustable focus optic lens enables high concentration infrared laser light emission and freely adjusted cross line fineness for multiple uses.
CW or pulsing laser selectable
Technical data:
| Item | Infrared Cross Line Laser Modules |
| Wavelength(nm) | 1064nm |
| Output power(mW) | 50mW 100mW 200mW 300mW 400mW 500mW |
| Available Fan Angel (degrees) | 10°,15°,110° |
| Beam diameter at aperture(mm) | <2.5mm |
| Beam divergence(mrad) | 6 mrad |
| Beam mode | TE |
| Focus adjustable? | Yes |
| Operating voltage(v) | DC＝5V, 9V |
| Operating current (mA) | I<1000mA |
| Operating temperature(℃) | 10℃～45℃ |
| Storage temperature(℃) | -10℃～50℃ |
| Dimension | D16mm×L71mm; D26mm×L150mm |
| Expected lifetime (hours) | ≥8,000 hours |
| Warranty | 6 months |
Packing list: 1 ea 1064nm infrared cross line laser module and 1 ea AC/DC adapter
Applications: infrared laser collimation, laser medical surgery, scientific research, infrared laser sight, optical instruments
Note: Powerful and seriously intense infrared laser radiation and reflection are generating of beam aperture. It might cause potential thermal energy hurt to human eyes. Do remember to avoid eye exposure and wear correct laser safety goggles so as to make free and secured measurement.
