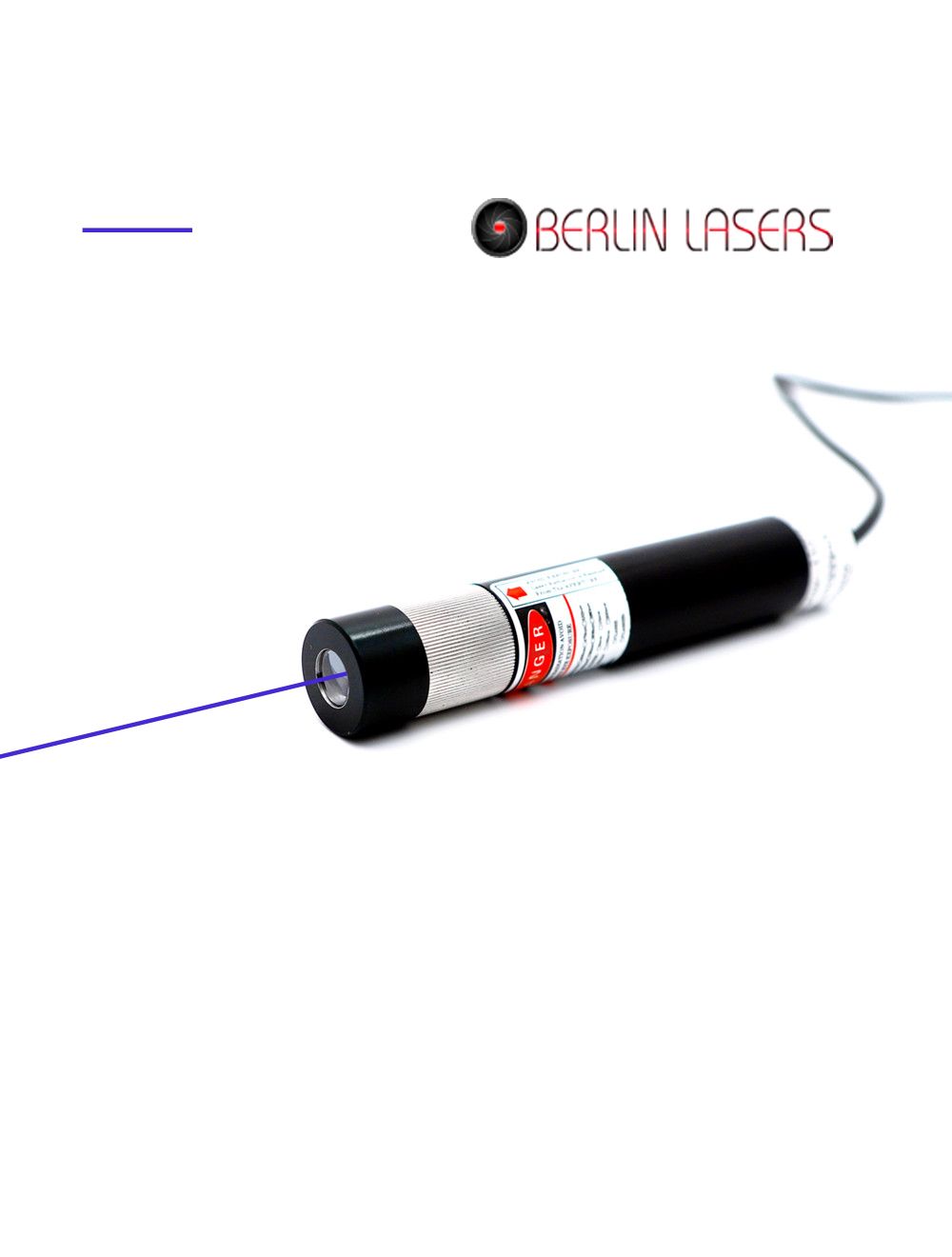

Wide Fan Angles 10°-110°462nm 5mW to 100mW Blue Laser Line Generators
Integrated with import 462nm blue laser diode, qualified optic lens, thermal emitting system and APC, ACC driving circuit board, 462nm blue laser line generator keeps work with high brightness blue laser light emission, and emits highly fine and stable blue line aligning source. After proper use of external electric power source and proper mounting onto machine or device, industrial stabilized blue laser module provides users the best line aligning source for all precise line measurement for labs, institutes and colleges.
- Buy 3 for $137.99 each and save 1%
- Buy 5 for $135.99 each and save 3%
- Buy 10 for $133.99 each and save 4%
Industrial stabilized 462nm blue laser line generator gets featured advantages of ultra compact design, low production cost, good stability and good direction. After generating high quality Gaussian beam or no Gaussian distribution blue laser beam, direct diode emission made laser line module assures high fineness and high brightness blue line alignment for all precise device manufacturing works.
Key features:
Import 462nm blue laser diode within 5mW to 100mW assures highly visible blue laser beam emission, and highly clear and fine line indication within maximum distance of 25 meters.
Wide fan angles of 10 to 110 degree glass coated lens and Powell lens with strict laser beam stability tests assures high fineness blue line generation for long lasting and long distance.
AC/DC adapter supports 462nm blue laser module with continuous blue laser beam emission and highly stable blue line projection, no affect by overheating and over current.
Adjustable focus lens enables high brightness blue laser light concentration, and converts into increasing accuracy and fineness blue line source.
CW and pulsing laser selectable
Technical data:
Item | Blue Laser Line Generators |
Wavelength (nm) | 462nm |
Output power (mW) | 5mW, 10mW, 20mW, 30mW, 50mW, 80mW, 100mW |
Available Fan Angle(degrees) | 10°, 16°, 20°, 30°, 45°, 50°, 60°, 93°,110° |
Laser Class | IIIa, IIIB |
Beam thickness at aperture (mm) | <2.5mm; At 2m distance: <2.5mm |
Beam divergence (mrad) | 3.0mrad |
Beam mode (before optics) | TEM |
Focus adjustable? | Yes |
Operating voltage(v) | DC=5V, 9V |
Operating current (mA) | I<1000mA |
Operating temperature(℃) | 10℃~45℃ |
Storage temperature(℃) | -10℃~50℃ |
Dimension | D16mm×L91mm;D26mm×L150mm |
Expected lifetime (hours) | 8000 hours |
Warranty Period | 180 days |
Packing list: 1 ea 462nm blue laser line generator and 1 ea AC/DC adapter
Applications: laser show, laser displaying, industrial line alignment, biomedical and metrology, laser communication, lab experiment etc
Note: For operation of high power 462nm blue laser up to 50mW to 100mW, it generates powerful blue laser radiation and reflection. Do remember to wear correct laser safety goggles and avoid eye exposure to beam aperture so as to assure safe and fine line alignment constantly.
